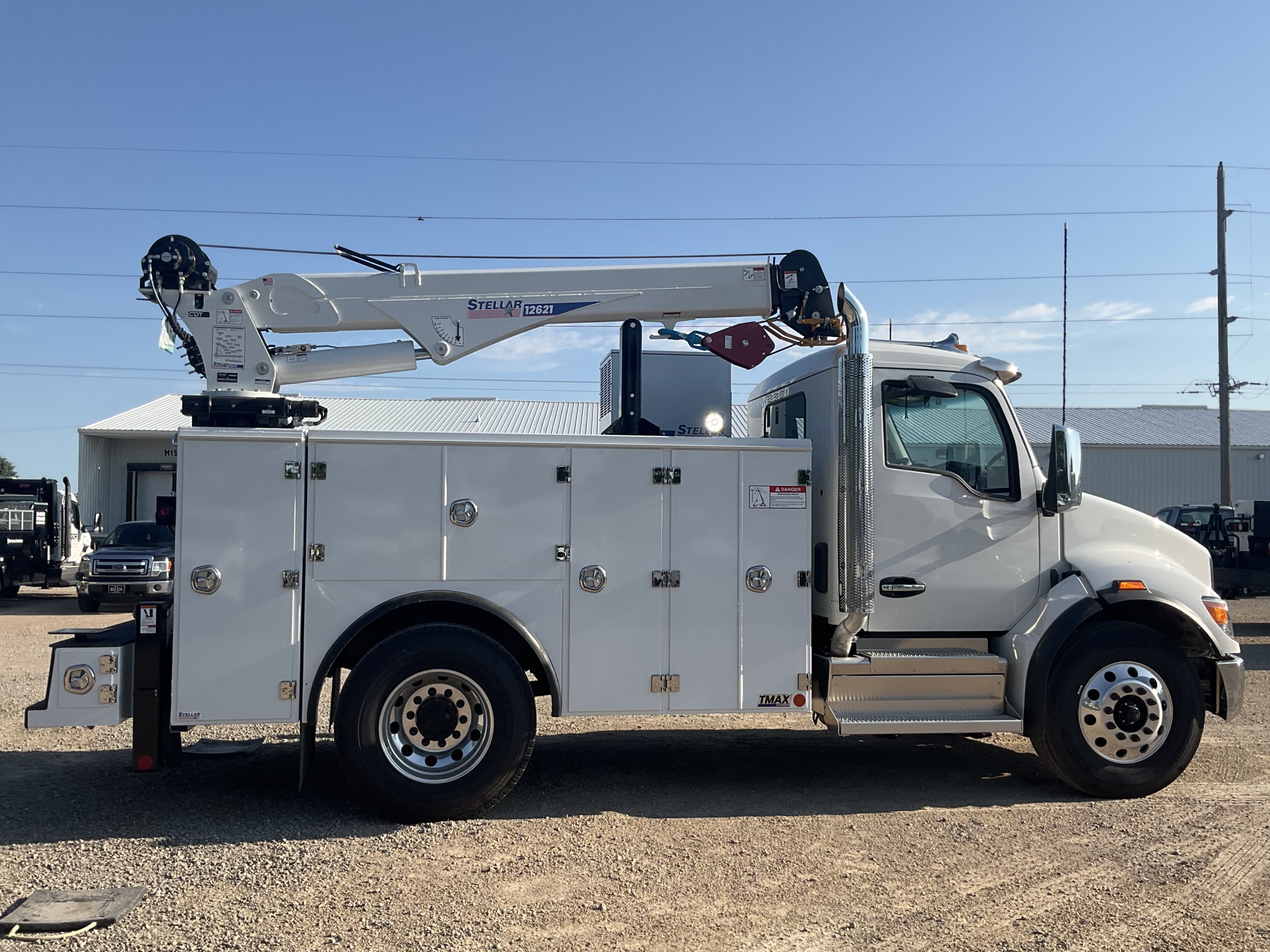

Stellar TMAX2-11 Aluminum Mechanic Body:

• Aluminum doors and side packs
• Torsion box understructure with isolated steel crane compartment
• Master-Lock system
• 133” long
• Six (6) recessed cargo tie-downs
• Two (2) rear mounted grab handles
• 12” aluminum fold down tailgate – painted black
• 21” work bench bumper with thru compartment
• Rubber fenderettes
• All compartments raised to 60” H
• Overlapped doors on SS1V/CS1V and horizontal compartments
• 2- & 3-point stainless steel compression latches
• Stainless steel “Billet Style” hinges
• Spring loaded door stops
• Dual-seal automotive type compartment weather seal

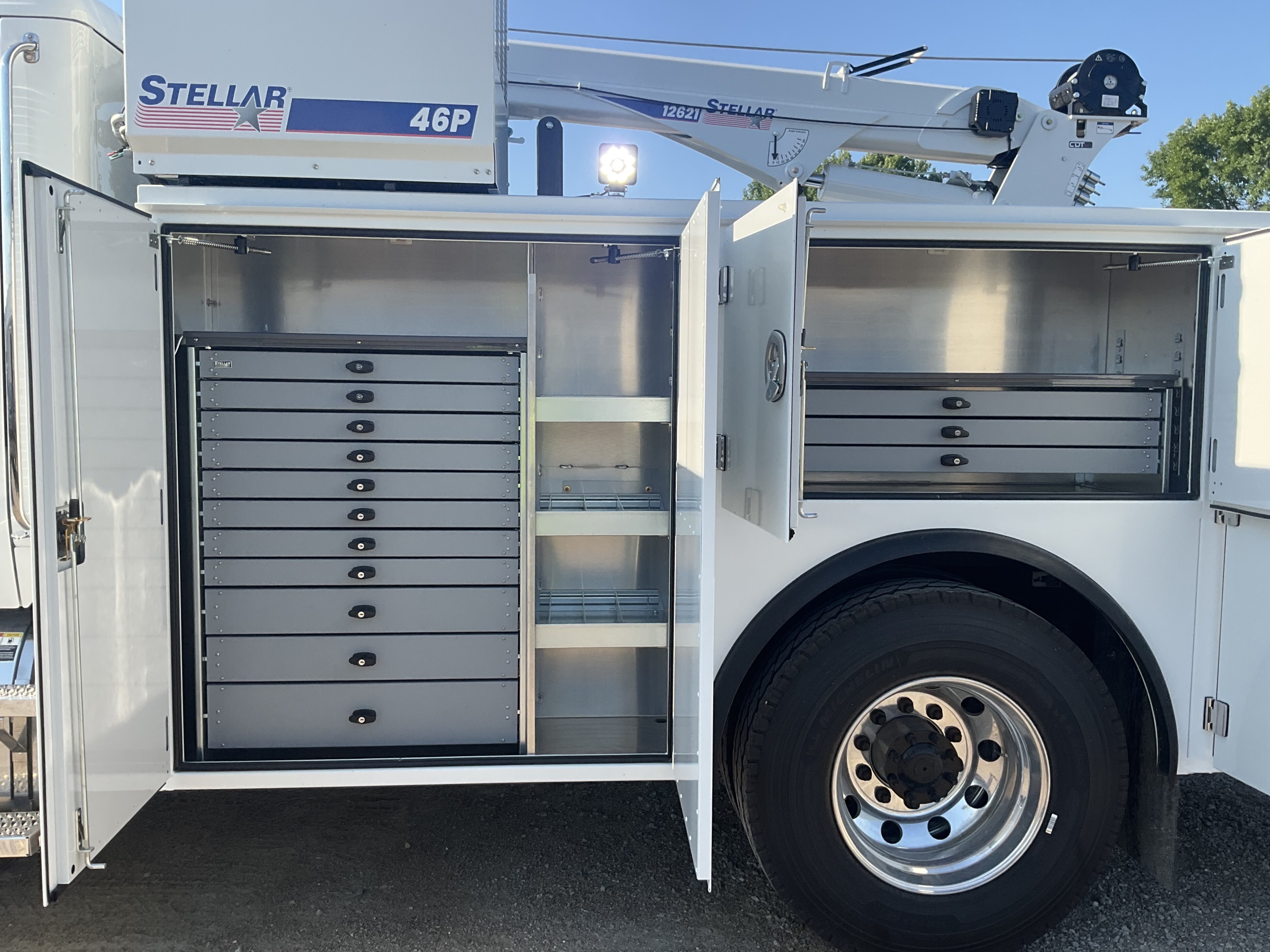

• SS1VF – Heavy duty aluminum drawer set – 43”H x 34”W x 18”D – 8-3”, 2-5”, 1-7”
• SS1VR – Shelf with (3) dividers – 17.63”W x 19”D

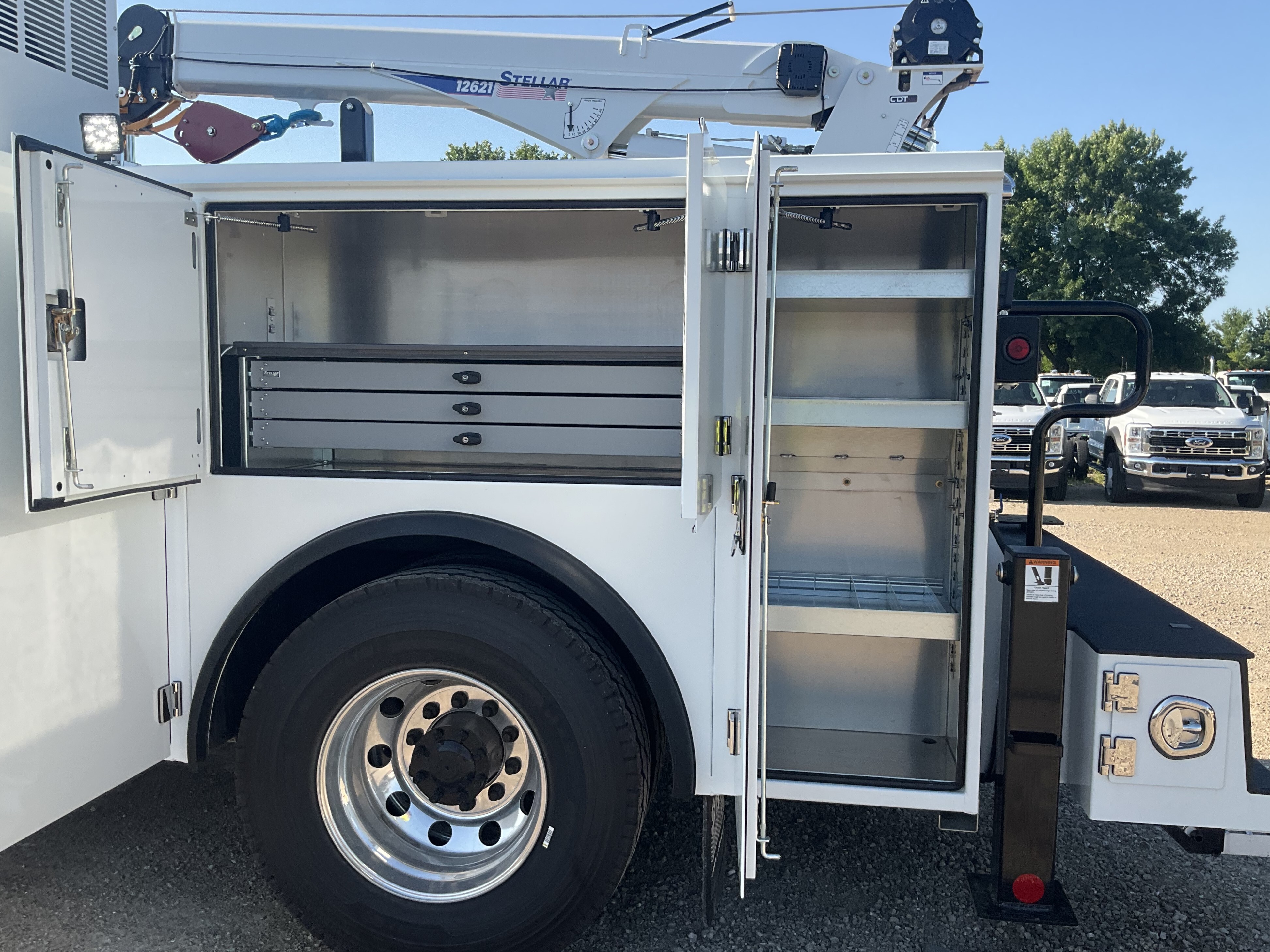

• SS Horizontal – Heavy duty aluminum drawer set
• SS Rear – Shelf with (3) dividers – 24.38” W x 19” D

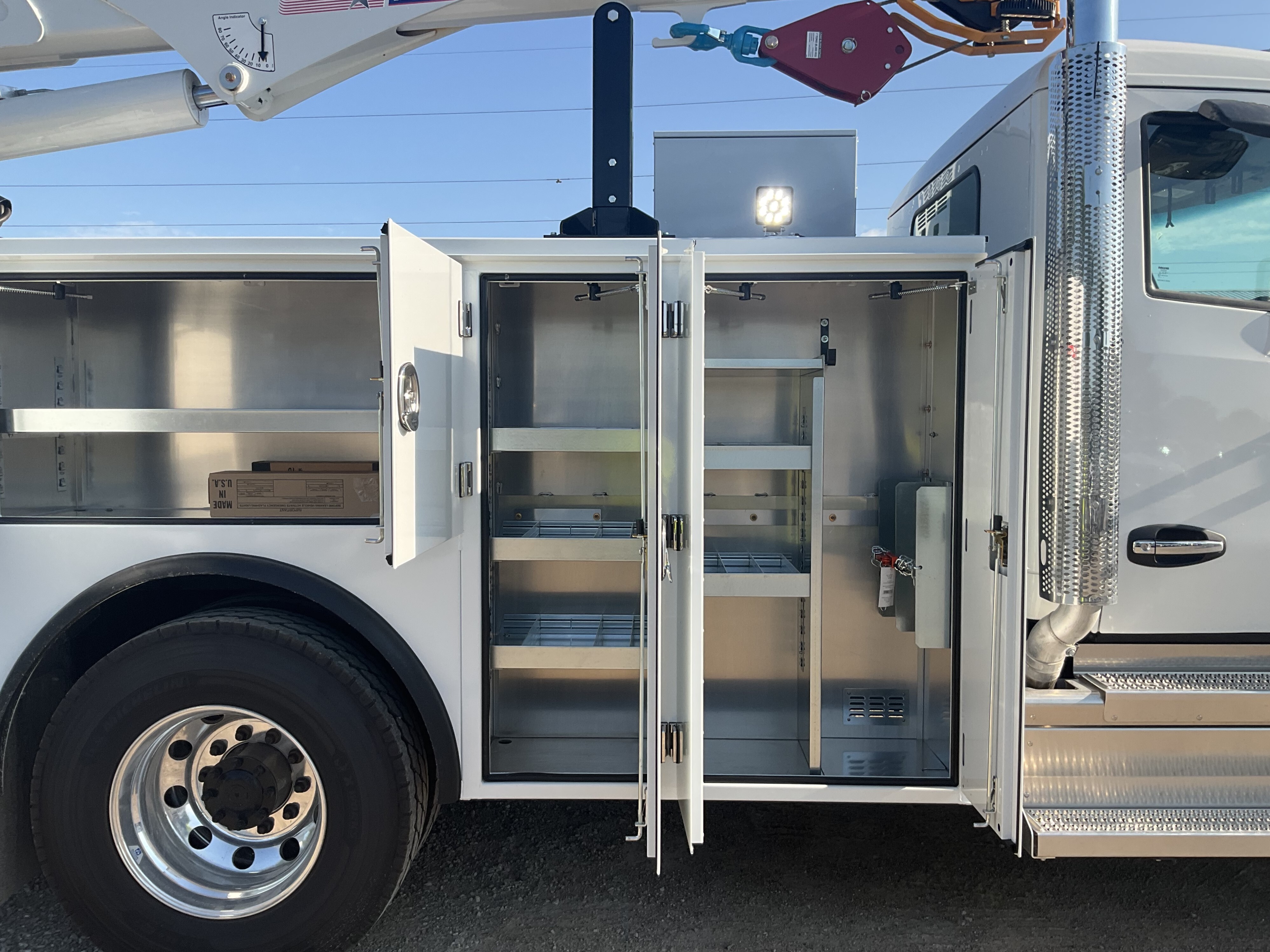

• CS1V – Divider kit with shelves and Oxy-Acetylene bottle holder holds 2 bottles
• CS2V – Shelf with (3) dividers – 21” W x 19” D
• CS Horizontal – Shelf with 3 dividers – 52” W x 19” D
• CS Rear – ½” x 50’ hose reel with roller guide – exits rear of body
• 22-gallon air tanks
• FLR system – 1 outlet for air hose (filter, lubricator, regulator)
• Backup alarm
• ICC safety kit – 2.5 lb fire extinguisher and reflector kit
• Pintle hitch mount
• Spray-on bed liner for load bed walls and floors
• Undercoated
• Prime painted white
• Stellar 46P hydraulic driven air compressor – 46 CFM @ 175 PSI, 4 cylinder 2 stage compressor, direct drive coupling, oil cooler, fan, and hydraulic motor

Stellar 12621 telescopic crane:

• 77,800 ft/lb rated when in boost mode
• 12,000 lb maximum capacity at 6’5” radius when in boost mode
• 21’ maximum hydraulic reach
• Boom elevation: -10° to +80°
• 400° non-continuous rotation
• Planetary winch with 100’ of 7/16” wire rope
• Max line pull speed 55ft/min
• Quick release stow hook
• Proportional radio remote control
• CDTpro boost mode
• On-Demand speed control ramps engine RPM up only when the crane is being used
• Greasable pivot bushings
• Hydraulic stabilizers

2025 Kenworth T280:

• Paccar PX-7 engine 300hp diesel
• Allison 2500 RDS automatic transmission
• Horizontal exhaust with vertical pipe
• Air brakes
• 56 gallon aluminum fuel tank
• Tires – 11R22.5
• Air conditioning
• Air cushion driver’s seat

STOCK PHOTOS
