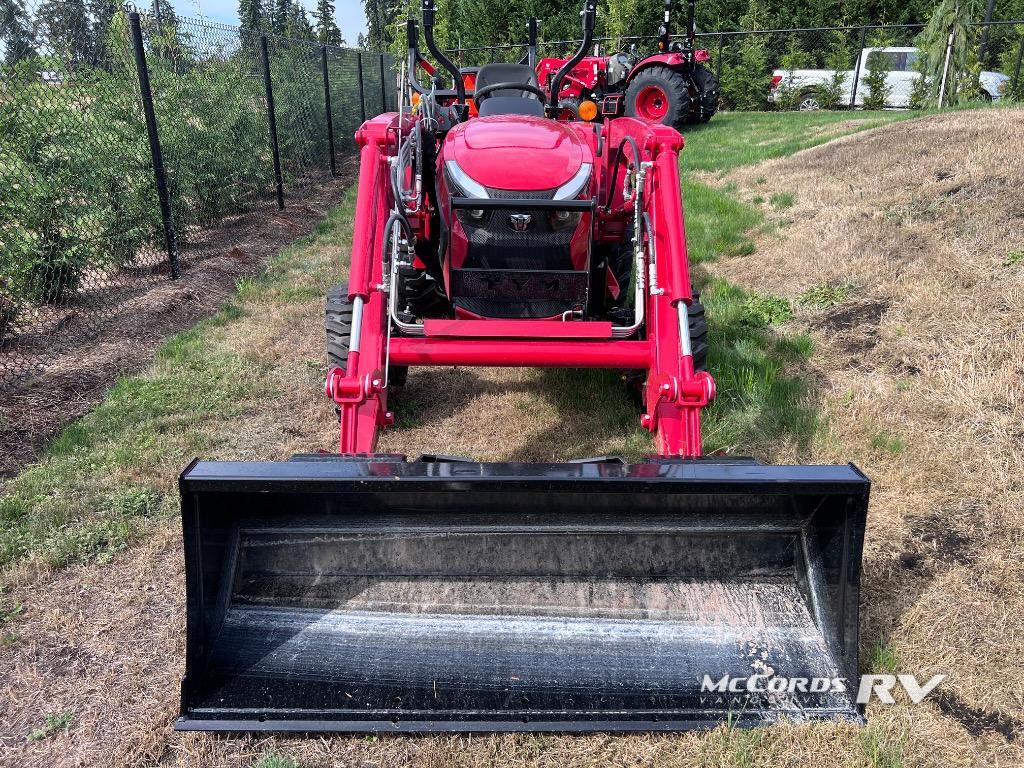

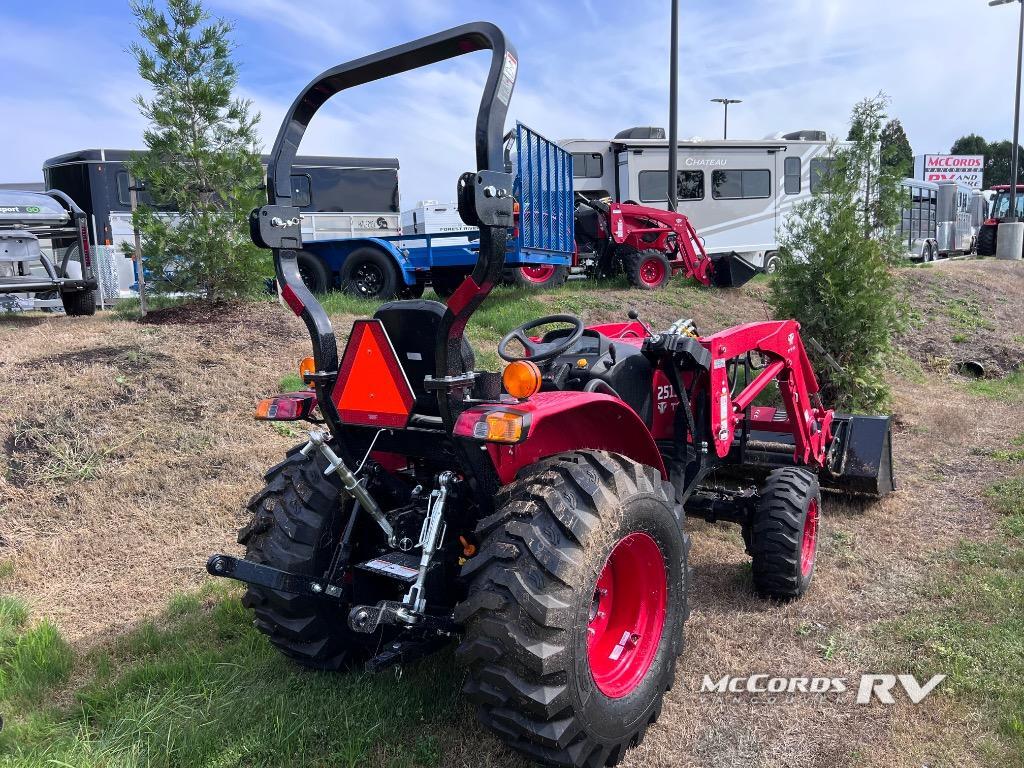

2025 TYM TRACTORS, TYM T2515, Engine manufacturer TYM AN IDI Type

Natural Aspiration

Gross engine power 24 hp

PTO power 21 hp 15.7 kW

Rated engine speed 2100 rpm

No. of cylinders 3

Displacement 104.5 cu. in. 1714 cc

Air cleaner Dry Element

Alternator 12V 50A

Fuel system IDI

Transmission type HST

No. of speeds 3-Range

Max.traveling speed 15.2 mph 24.5 kmph

Brakes Wet, Multi-disc

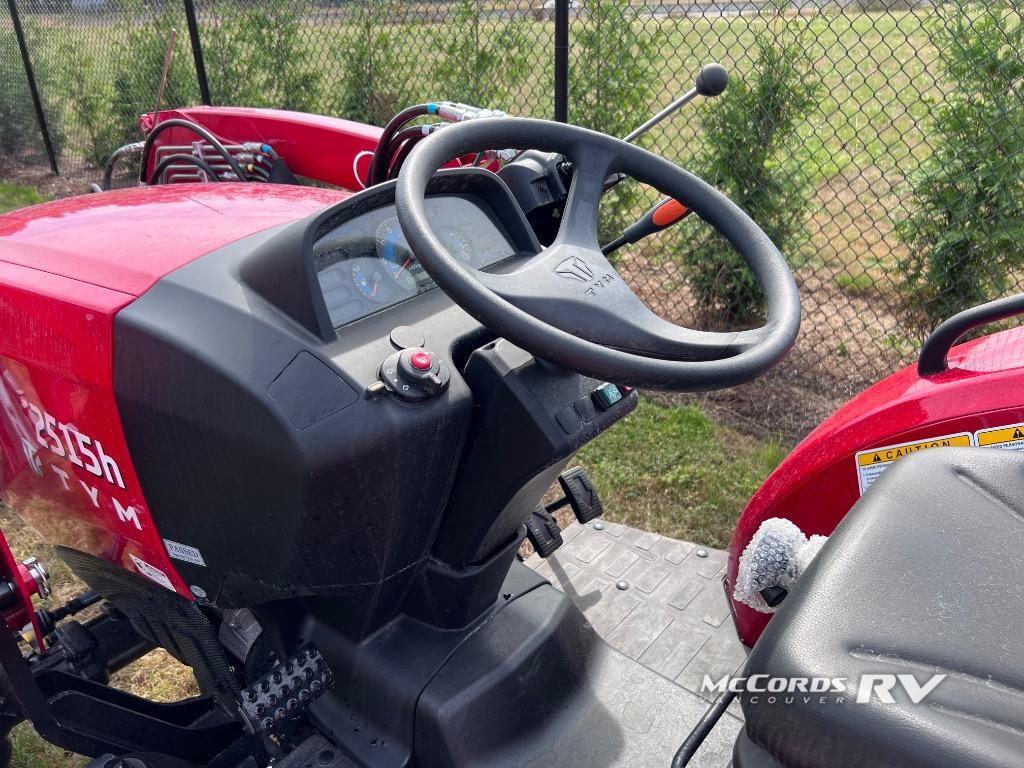

Steering Hydrostatic

Clutch No

Fuel tank 7.1 gal 27 L

Coolant 5.3 qt 4.9 L

Crankcase 4.5 qt 4.2 L

Transmission/Hydraulics system 9.8 gal  37.1 L

Front axle 1.7 qt 1.6 L

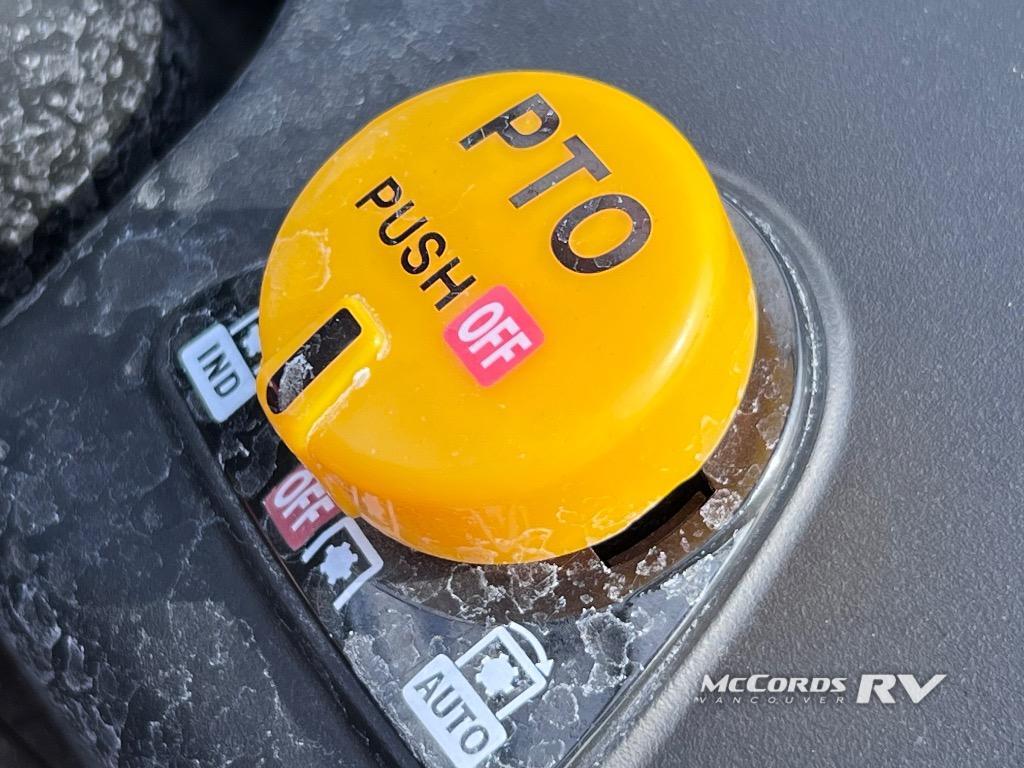

PTO type Independent

PTO control Wet, Multi-disc

PTO rear 540 rpm

Pump type Single Gear Pump

Implement ow 4 gpm 15.1 l/min

Steering ow 7.5 gpm 28.4 l/min

Total ow 11.5 gpm 43.5 l/min

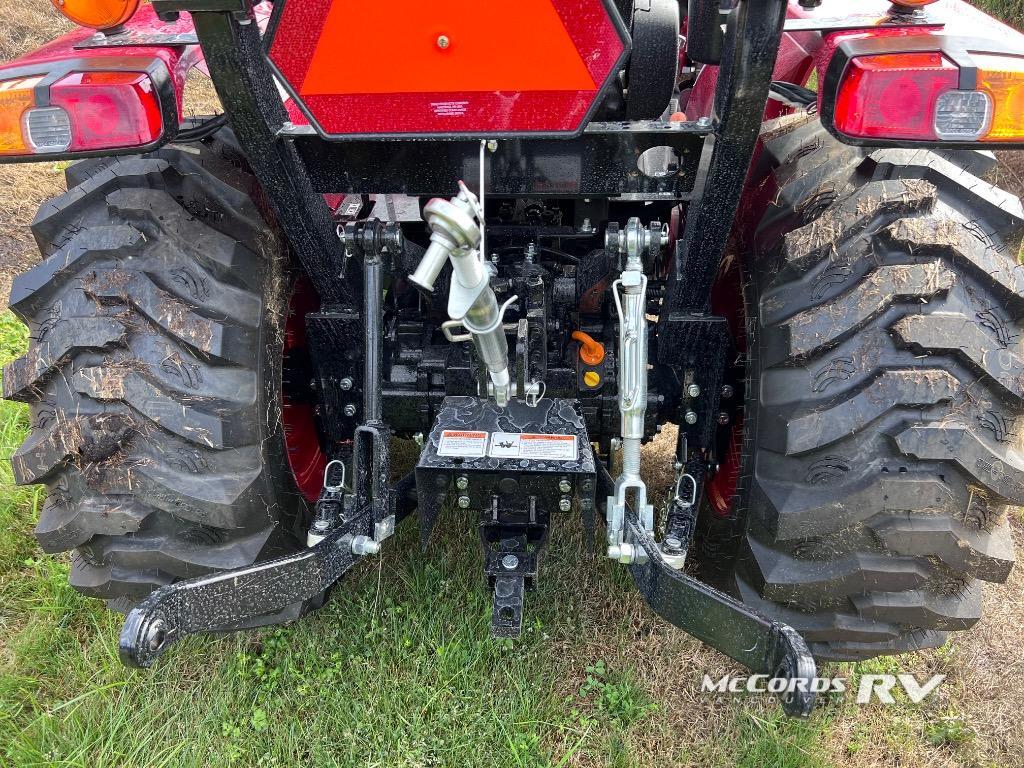

Category, -point hitch I

Hitch lift capacity 3306 lb 1500 kg

Hitch lift capacity at 24 inches behind link ends 2425 lb 1100 kg

Lift control type Position

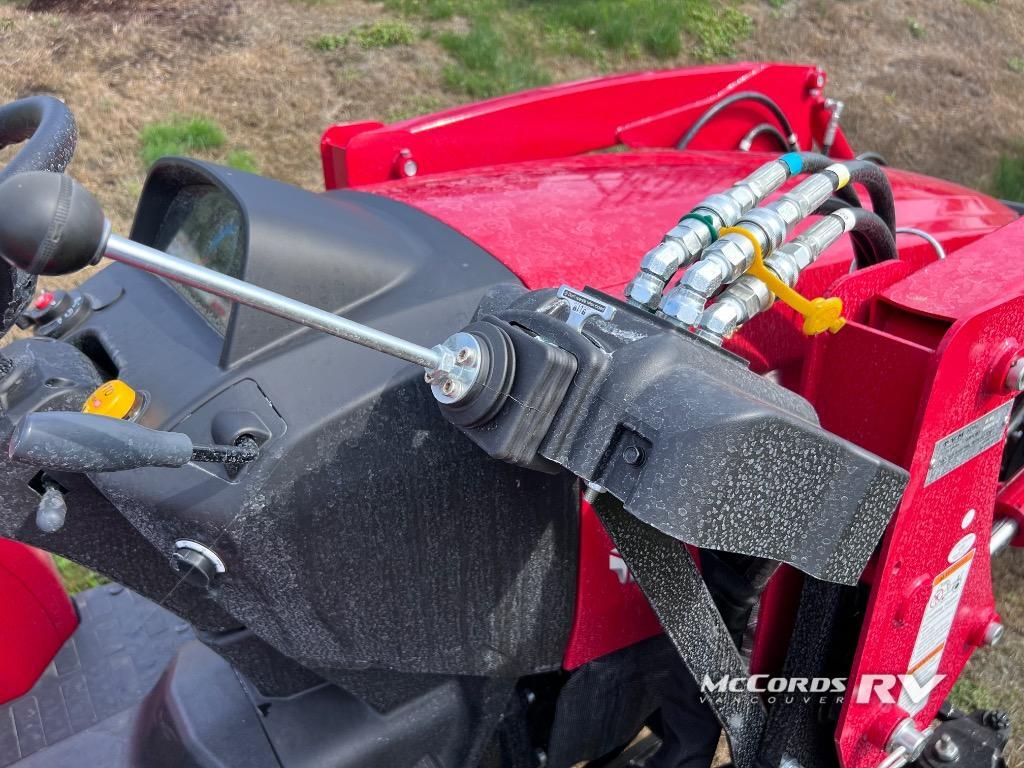

No. of standard remote valves Optional (up to 4)

Overall length with -point hitch 120.9 in. 3071 mm

Overall width 56.3 in. 1430 mm

Wheelbase 65.7 in. 1670 mm

Height to top of ROPS 97.3 in. 2471 mm

Min. ground clearance 14.4 in. 366 mm

Min. turn radius with brakes 7.5 in 2.3 mm

Min. turn radius without brakes 104.7 in 2659.4 mm

Weight with ROPS 2969 lb 1347 kg

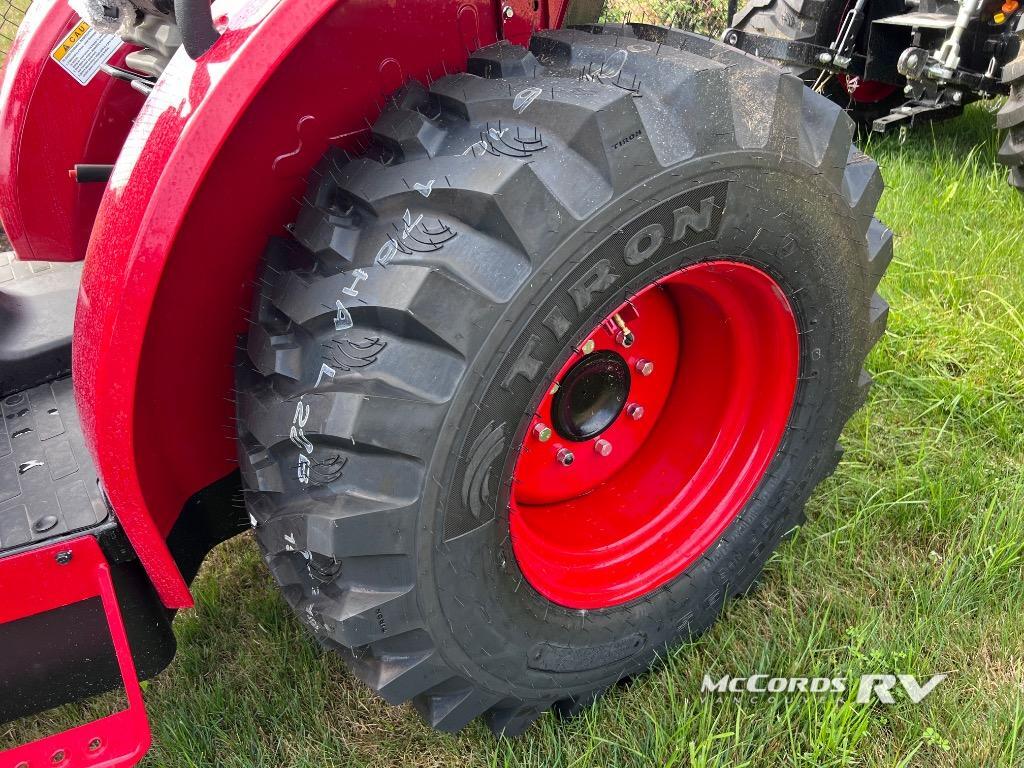

R1 Agricultural - Front 8-16

R1 Agricultural - Rear 12.4-24

R4 Industrial - Front 25x8.50-14

R4 Industrial - Rear 15x19.5
