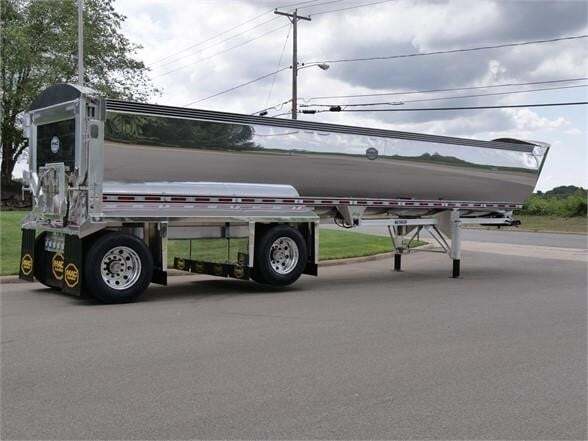

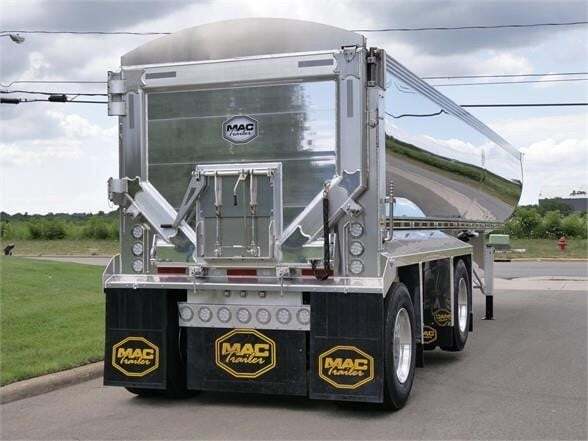

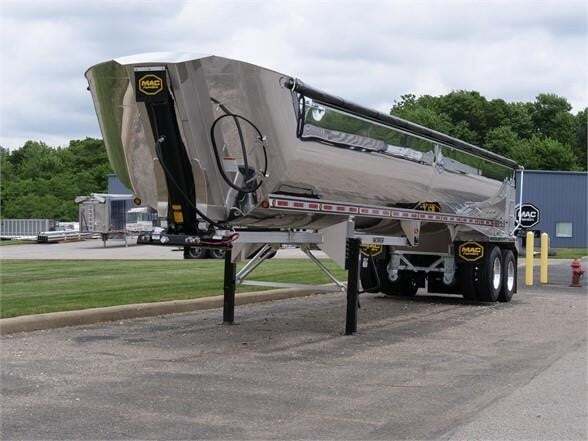

2026 MAC TRAILER MFG, MACSIMIZER Semi-Trailers - Dump Trailers - End, MAC Trailer MFG Aluminum 36' Half Round **FET not Included** Body Load profile: Material, 80K GVWR Length: 36 ft | Width: 96 in. | Wall Height: 60 in. Neck Style: 9.125 I.O. in. height Floor/Sides: 1/4 in. floor, 3/16 in. sides Rear End Style: Squared-off Top Rail Option: Solid Rear Pocket Slope: 0 Hoist: 8-5-285 Custom Rear Hinge Pin: Standard Rubber Seal: Yes Floor Liner: None Vibration: None Body Hold Down: None Accessories: No bulkhead ladder, no shovel hanger, no front fenders, weld-on fenders over suspension, no side steps, no inside steps Lights Type: Grote L.E.D. w/ grommet Light Panel: 3 large 3 small 3 large (full panel) Apron: 1/4 in. x 6 in. light apron Standard marker lights: (3) each side Mid-turns: (1) pair LED, boxed-in Backup lights: None Auxiliary cable & wiring: None Gate Sheet Thickness: 3/16 in. sheet & post Operation: Ball valve Hinge Type: Overslung only Bracing: 3-panel Winder/Safety Latch: 1 per side Coal Door, Chute, Spreader Chains, Tarp Hooks: None Axles & Suspension Model: Closed tandem Number of Primary Axles: 2 Suspension: Hendrickson Intraax AAT-30K w/ HXL-5 Axle spacing: 52 in. Brakes: 7 in. XL w/ 30-30 chambers Hubs & Drums: Cast w/ steel hub HP 10 stud TP, LS, 7 in. Tires: General RA 11R 22.5, 16 ply Wheels: Steel HP 22.5x8.25, white powder coated Tire Inflation System: None Lift Axles / Steerable Lift Axles: None Chassis Frame Rails: 17 in. aluminum beams Rubber Cushion Ride: Yes 5th Wheel Plate: 3/8 in. | Height: 49 in. King Pin: .375 King Pin only Rear Overhang: 6 in. Tractor Drive Model: Tandem drive Galvanized Suspension Hangers: Yes Hoist & Mount Style: 3 in. x 6 in. x 3/8 in. Suspension Control: Ball valve ABS: (1) 2S1M Meritor/WABCO Slacks: Automatic Axle Lubrication: HXL synthetic semi-fluid grease Dust Covers: Yes Landing Gear: Jost AX-150 (55,000 lb.), 10-year aluminum, driver s side Shims: Mylar Air Tanks: Aluminum Hydraulic Hose: 1 in. x 108 in. w/ wing fitting Flaps: Front & rear of tires No tow hooks, bumper, registration holder, hubodometer, or tire carriers Tarp - Additional Cost (Options Available) Paint & Finish Hangers: Galvanized Suspension Color: Black soft coat Dollies: Black (931716) Hoist: Black (931716) 5th Wheel Plate: Black (931716) Pin Striping: Black (931716) MAC Machine Finish Logos: Black (931716) Accessories Load Level Indicator: None Optional Signs: None ______________________________________________________________ Call and custom build to your very own specifications. Proud to be Florida's #1 choice for custom built, high quality, half round dump trailers. Delivery charges may apply. THE NATIONWIDE HAUL EDGE - We finance All Equipment! Even if you didn't buy from us! - Free Trucking Insurance Quote & Policy review for all Customers - DOT for Life - All equipment we sell gets a free DOT Inspection for lifetime - Extended Warranty options on All Equipment - GAP Insurance & Roadside Assistance is Availabl
