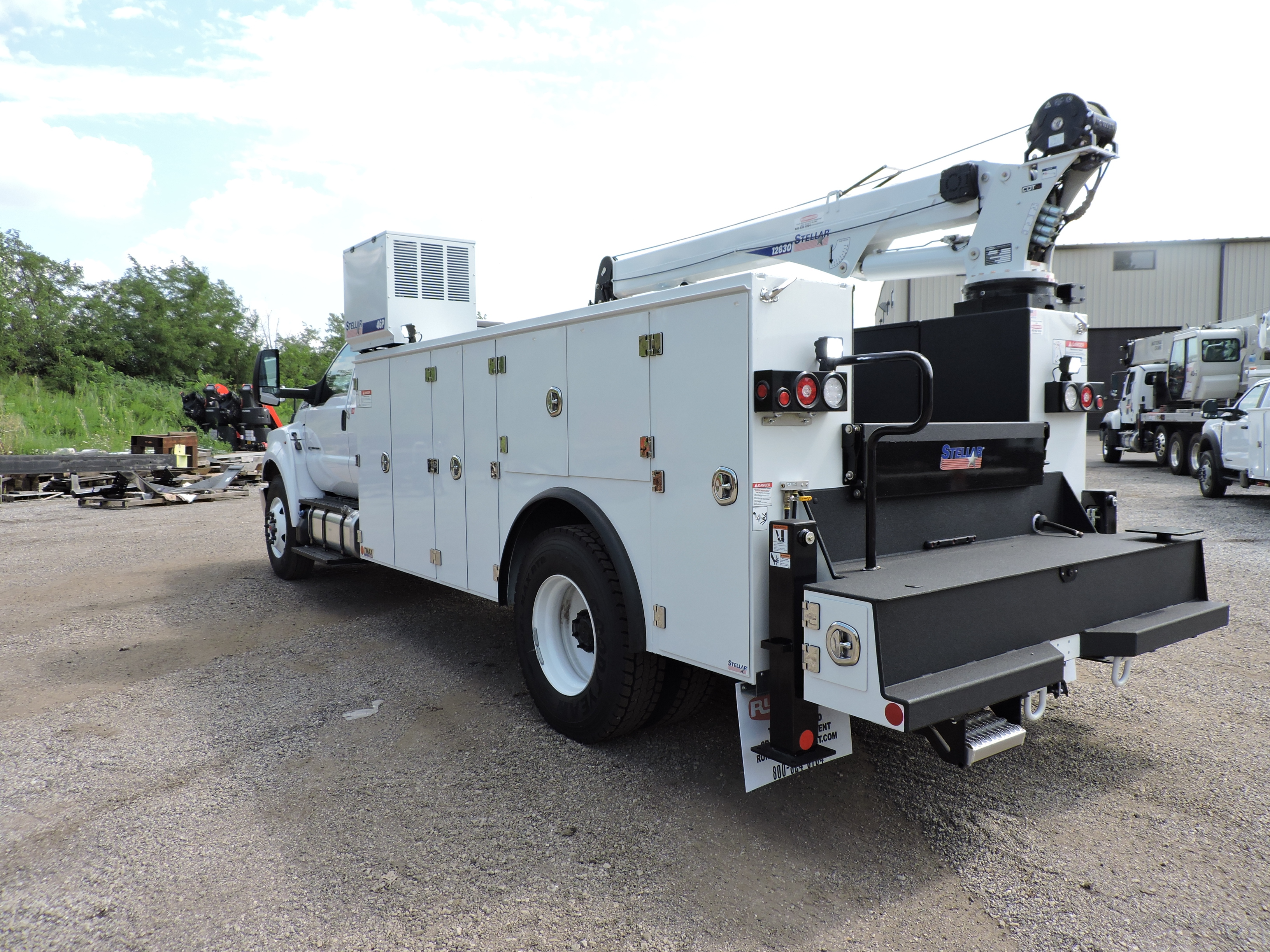

Stellar TMAX2-14 Aluminum Mechanic Body:

• Aluminum doors and side packs
• Torsion box understructure with isolated steel crane compartment
• Master-Lock system
• 168” long
• 50” loadbed width
• Six recessed cargo tie-downs
• Two rear mounted grab handles
• 12” aluminum fold down tailgate

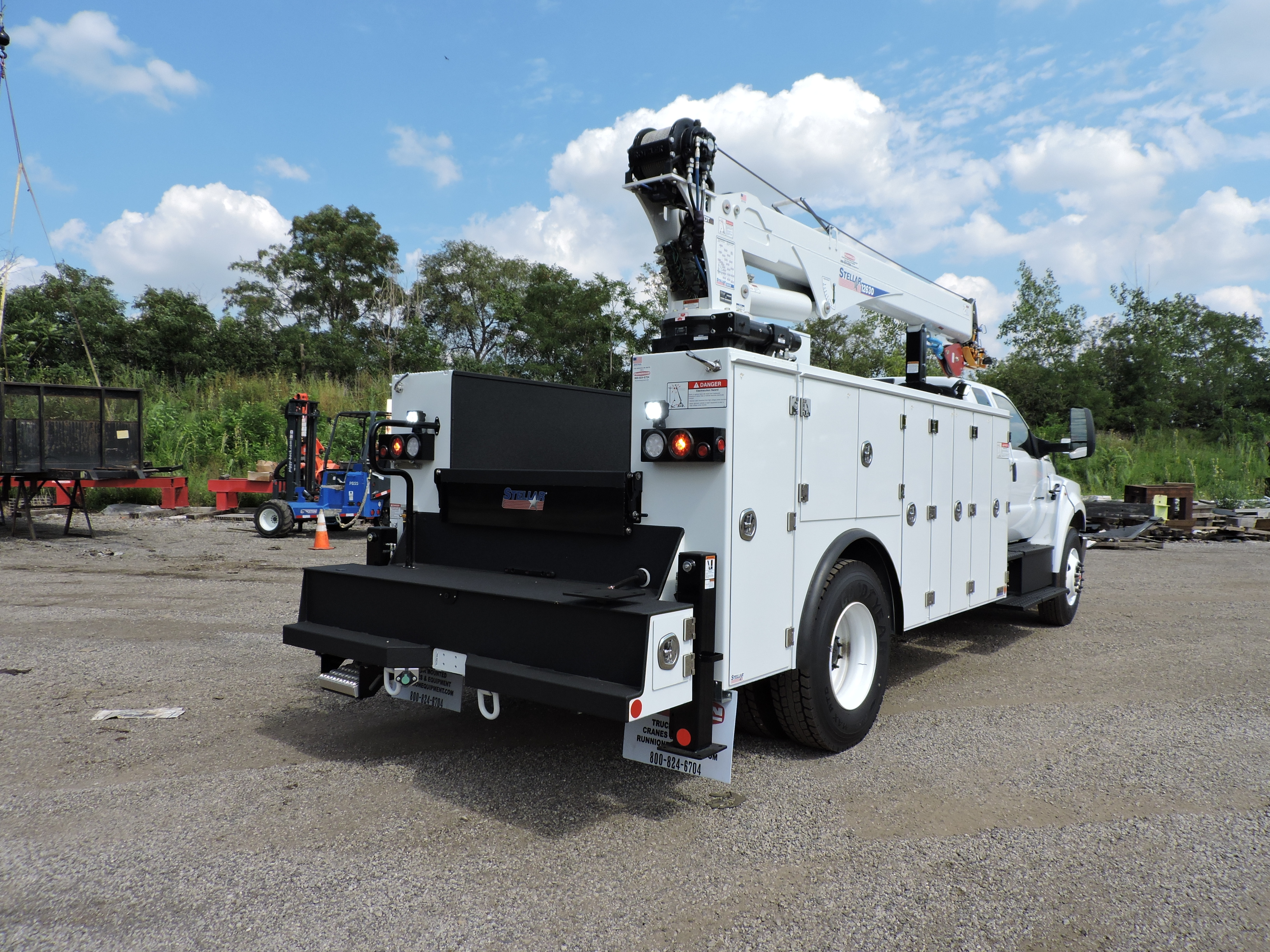

• 21” step bumper with thru compartment
• Vise mounting plate – receiver workbench mount
• Step, slide out for TMAX mechanics work bench bumper
• Rubber fenderettes

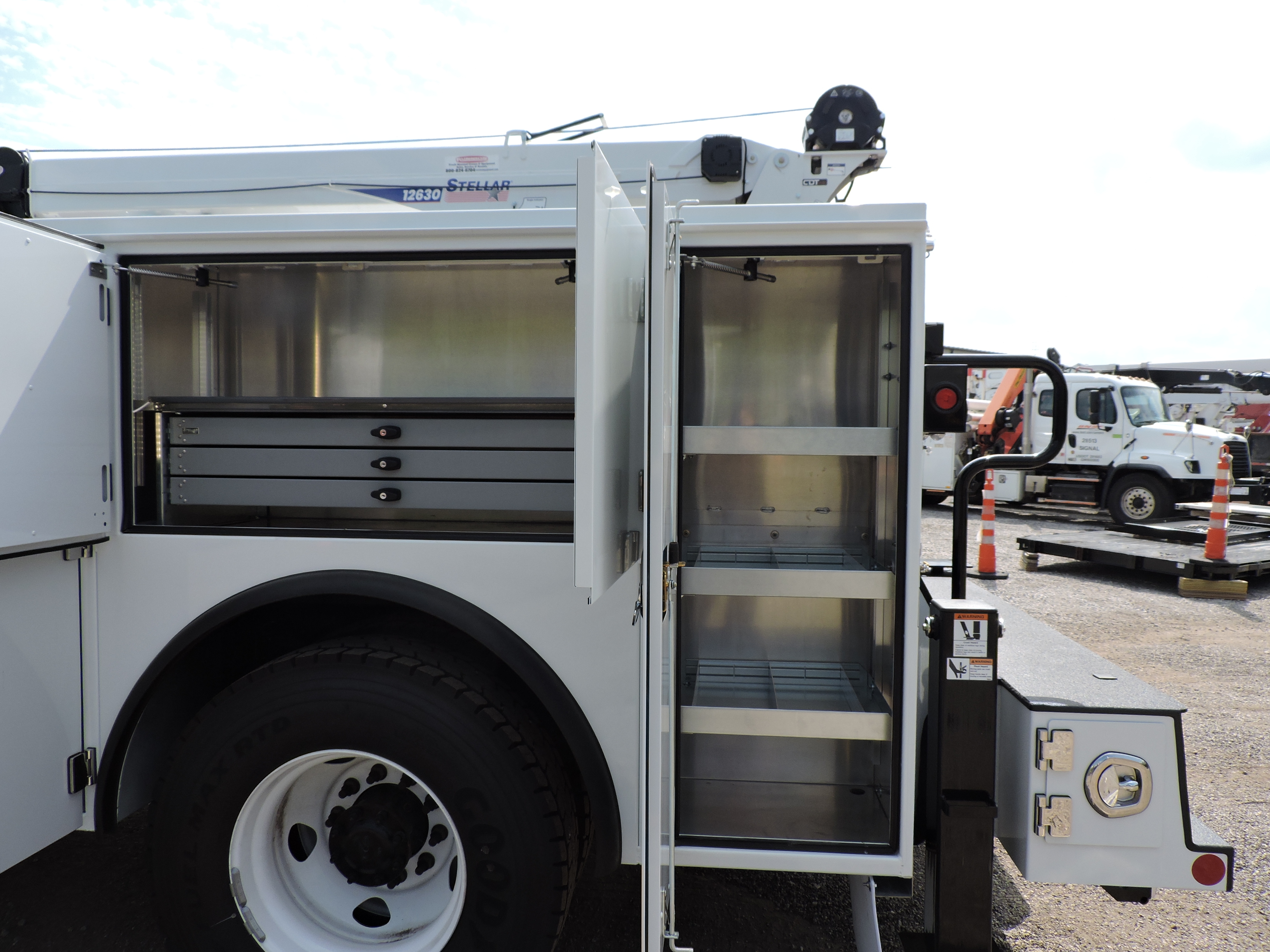

• All compartments raised to 60” H x 22” D
• Overlapped doors on SS1V/CS1V and horizontal compartments
• 2 & 3 point stainless steel compression latches
• Stainless steel “Billet Style” hinges
• Spring loaded door stops
• Dual-seal automotive type compartment weather seal
• LED compartment lights

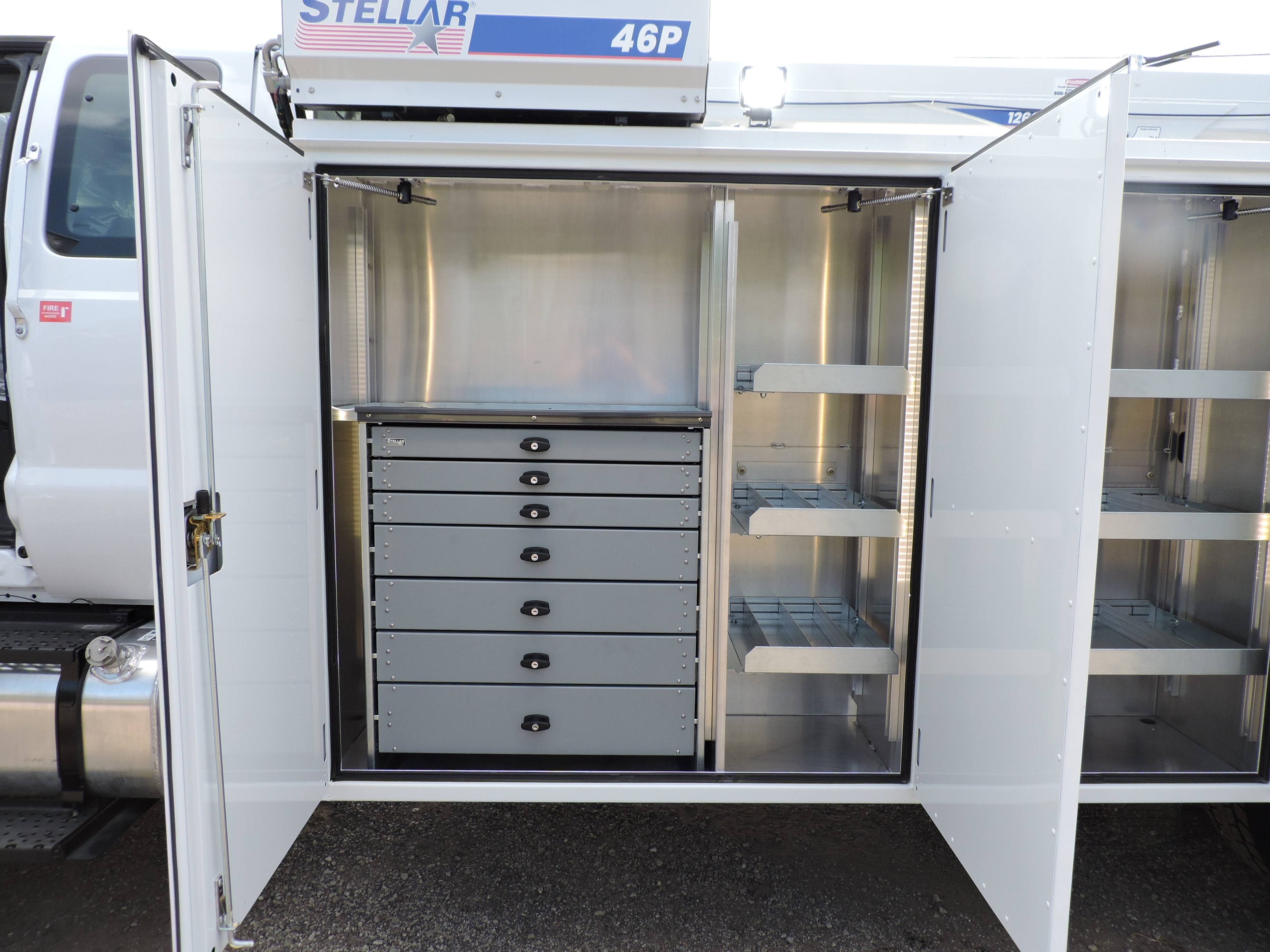

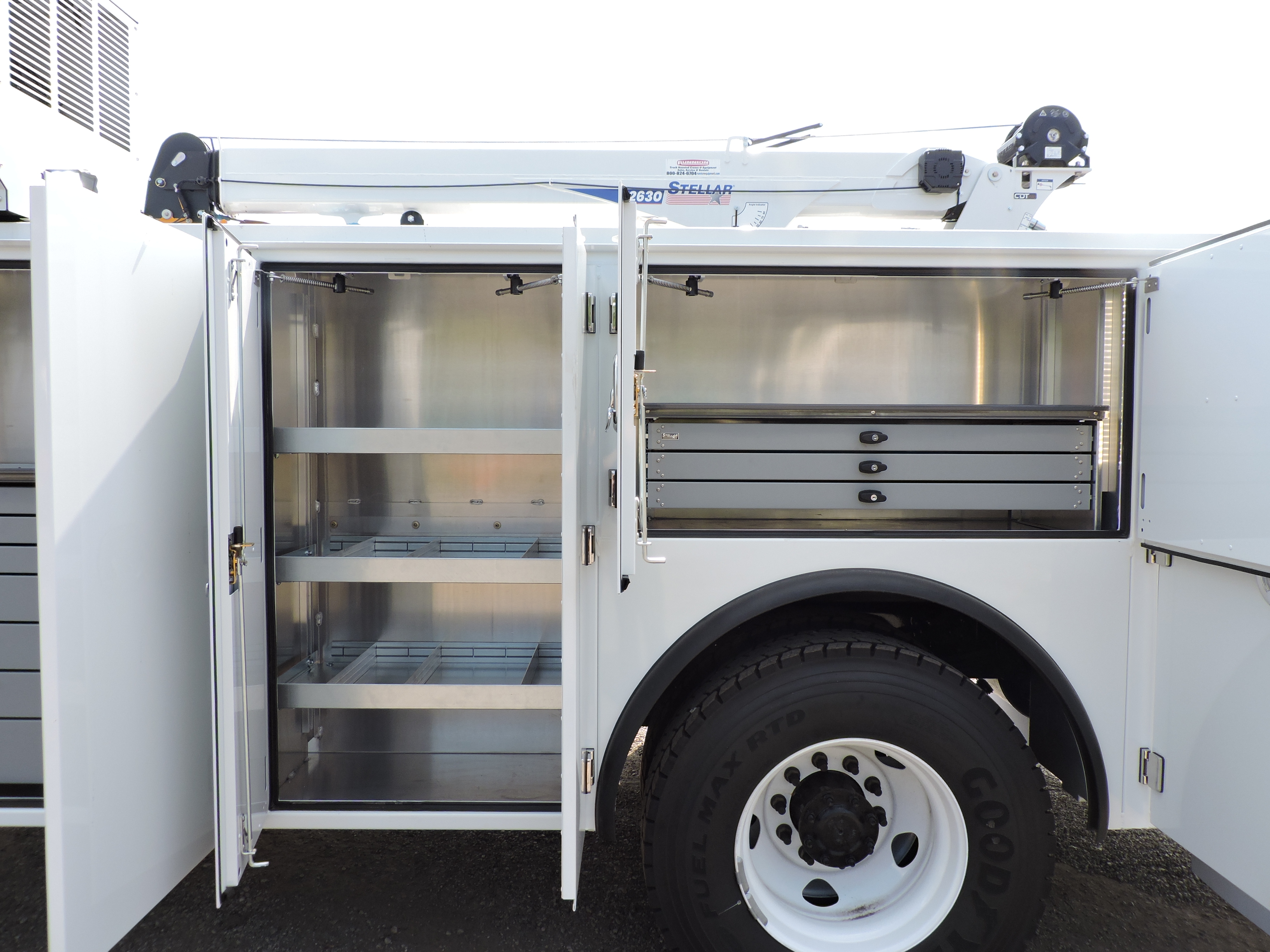

• SS1VF – Heavy duty aluminum drawer set – 1 shelf with 3 dividers with drawer lightbar
• SS1VR – 3 shelves with 3 dividers
• SS2V - 1 shelf with 3 dividers
• SS Horizontal – Heavy duty aluminum drawer set
• SS Rear – 3 shelves with 3 dividers

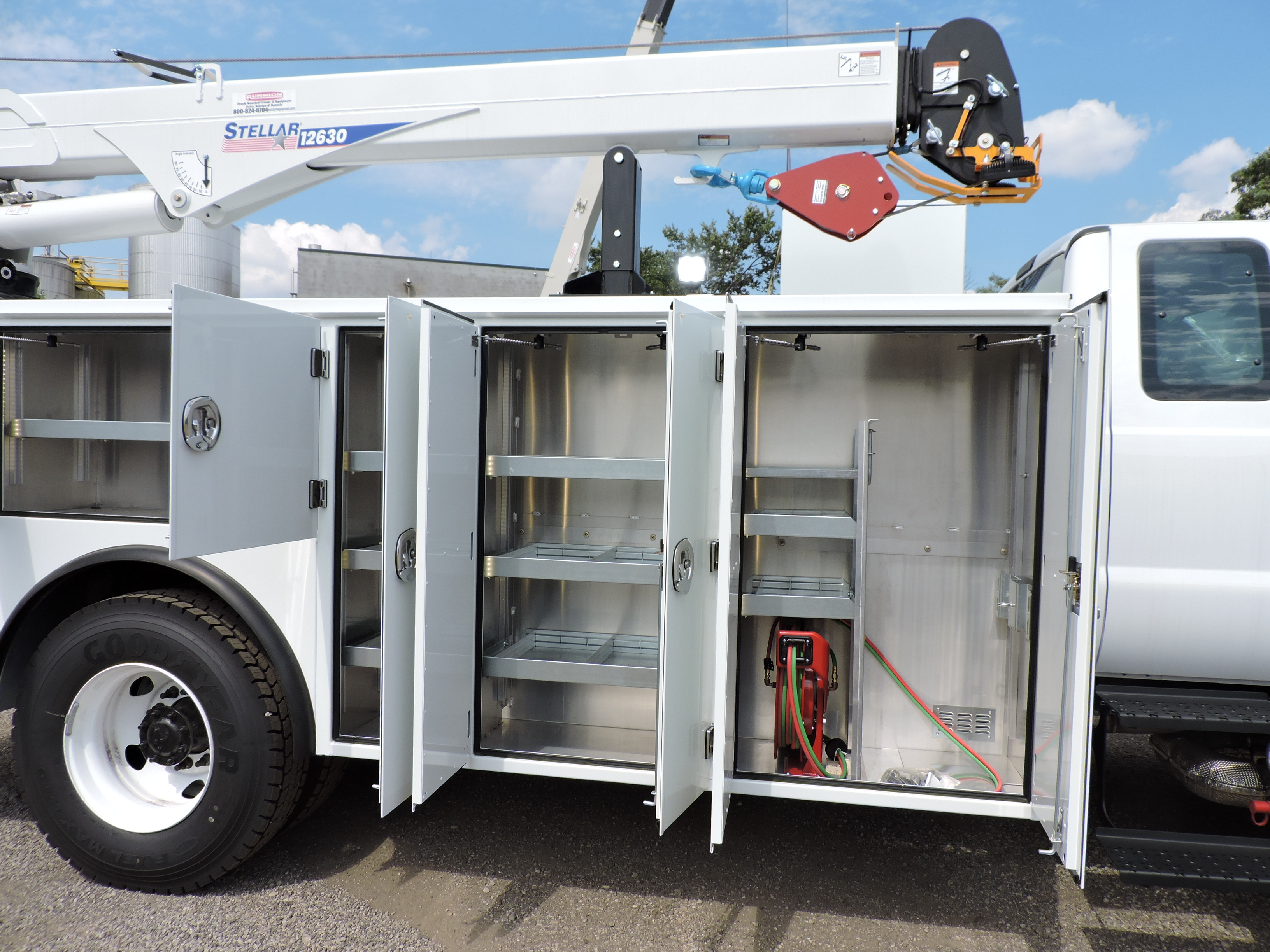

• CS1V – Divider kit with shelves and Oxy-Acetyln bottle holder holds 2 bottles
• CS2V – 3 shelves with 3 dividers
• CS3V – 3 shelves with 3 dividers
• CS Horizontal – Shelf with 3 dividers
• CS Rear – ½” x 50’ hose reel with roller guide – exits rear of body

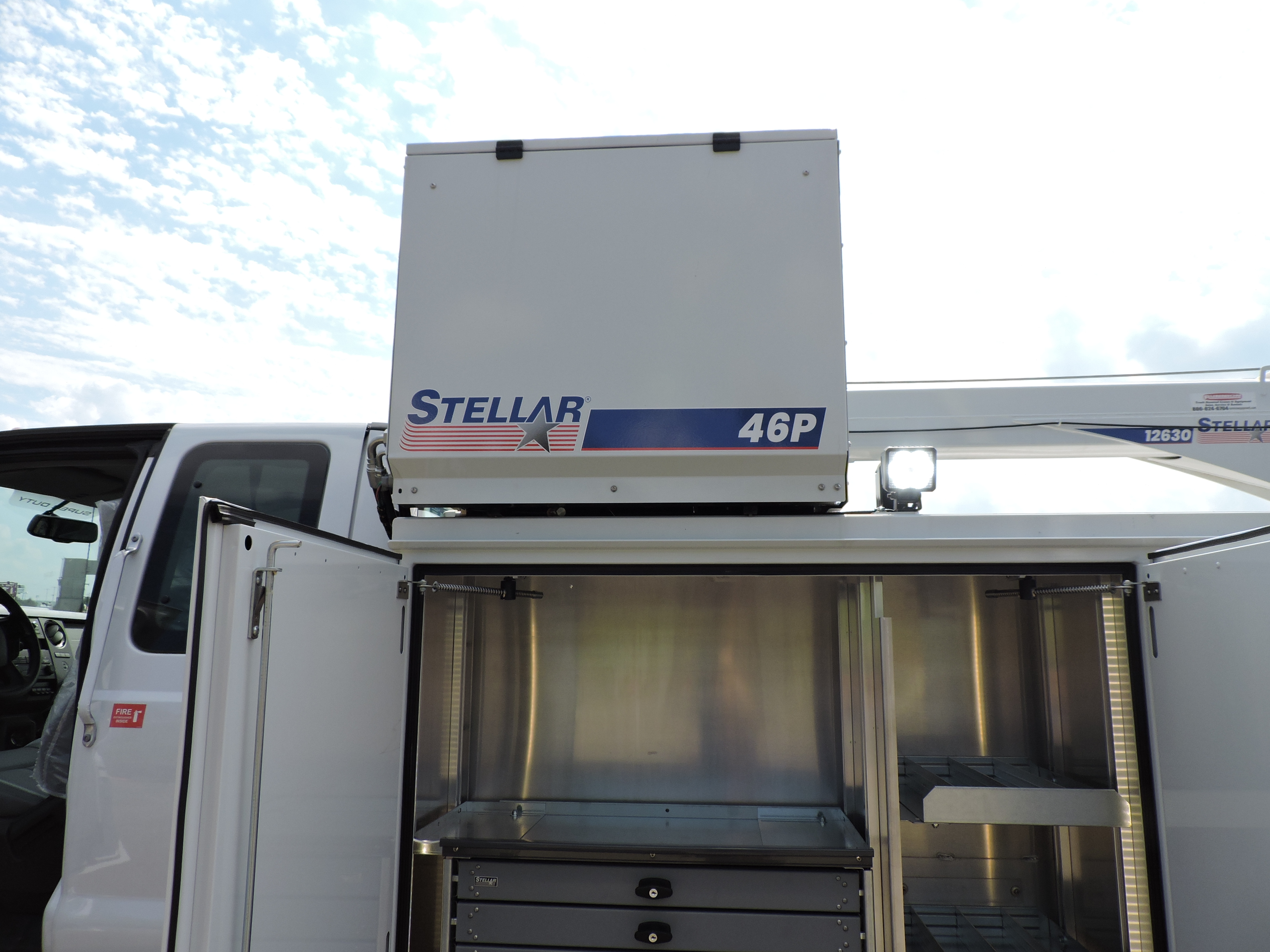

• Stellar 46P hydraulic driven air compressor produces 46CFM @ 175 PSI
• 22-gallon air tanks
• FLR system – ¾” air feed for ½” hose reel (filter, lubricator, regulator)
• 4 LED floodlights
• Dual LED Trilliant lights - mounted on boom tip – gravity rotating
• Backup alarm
• ICC safety kit
• Weld-on receiver hitch
• Spray-on bed liner for load bed walls and floors
• Prime painted white

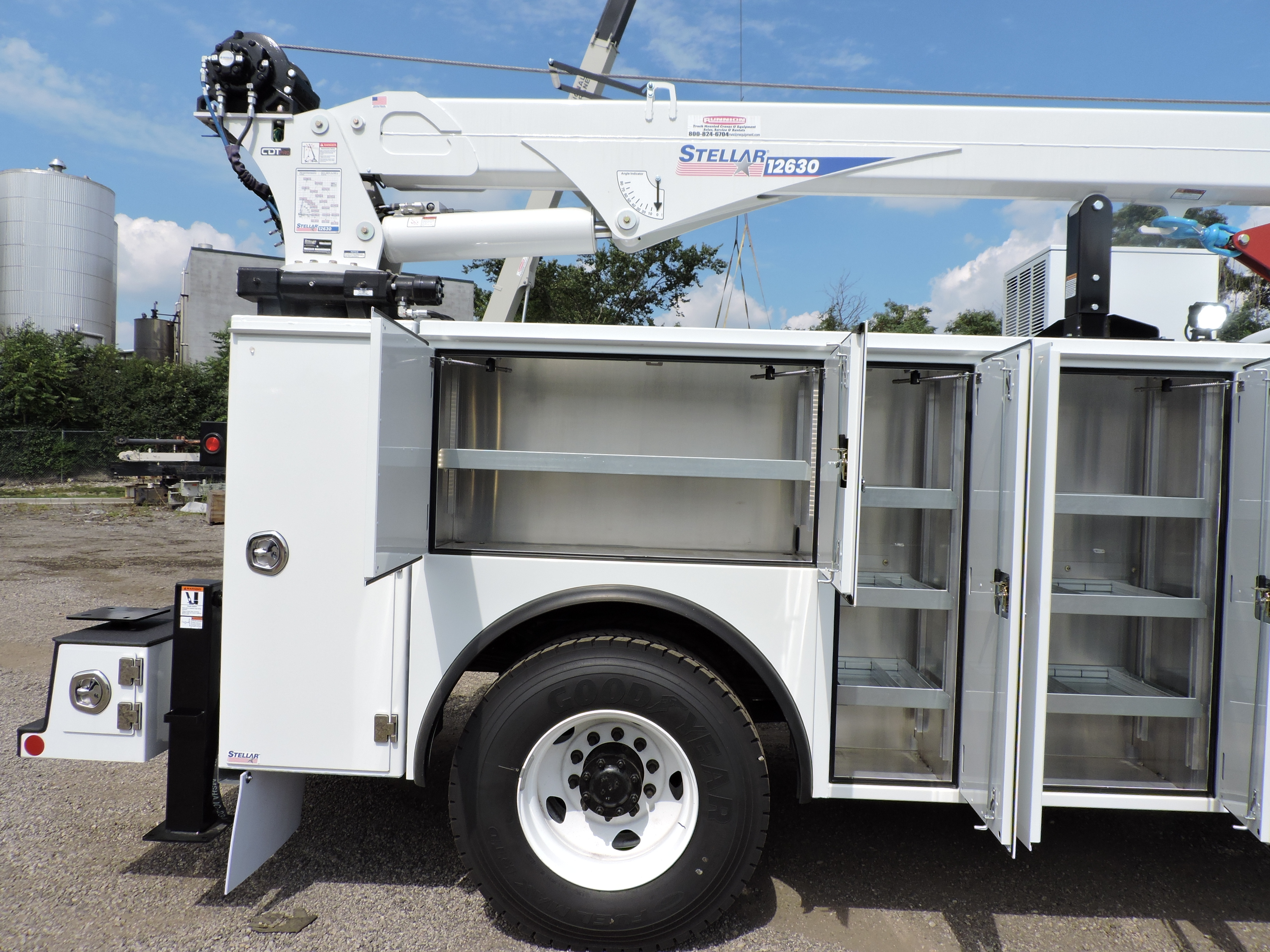

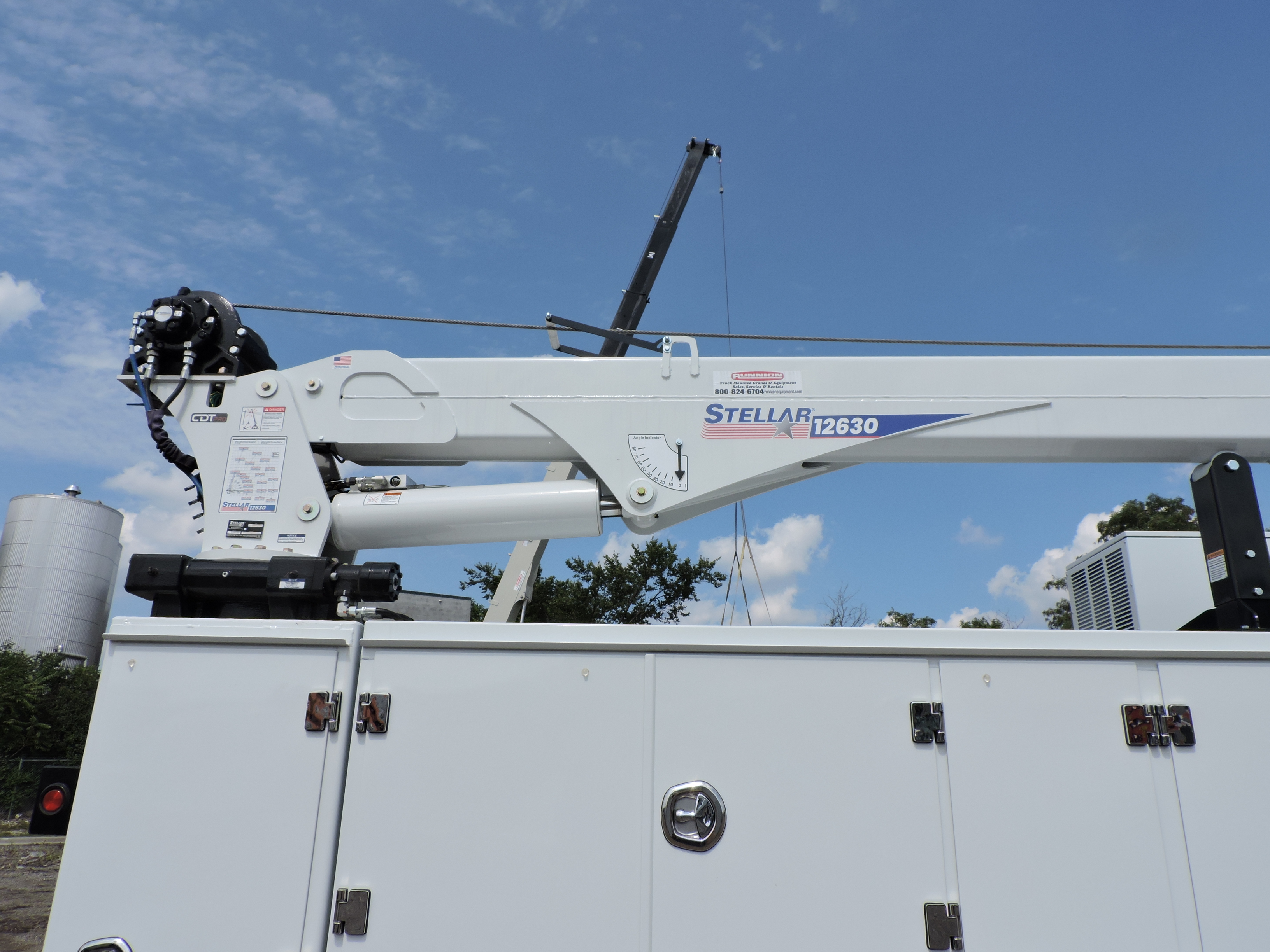

Stellar 12630 telescopic crane:

• 77,800 ft/lb rated when in boost mode
• 12,000# max capacity
• 30’ max hydraulic reach
• Hexagonal boom
• Boom elevation: -10° to +80°
• 400° non-continuous rotation
• Planetary winch with 100’ of 7/16” wire rope
• Max line pull speed 55ft/min
• Quick release snatch block stow
• Adjustable boom support, roller rest
• Proportional radio remote control
• CDTplus boost mode
• On-Demand speed control
• Greasable pivot bushings
• Hydraulic stabilizers

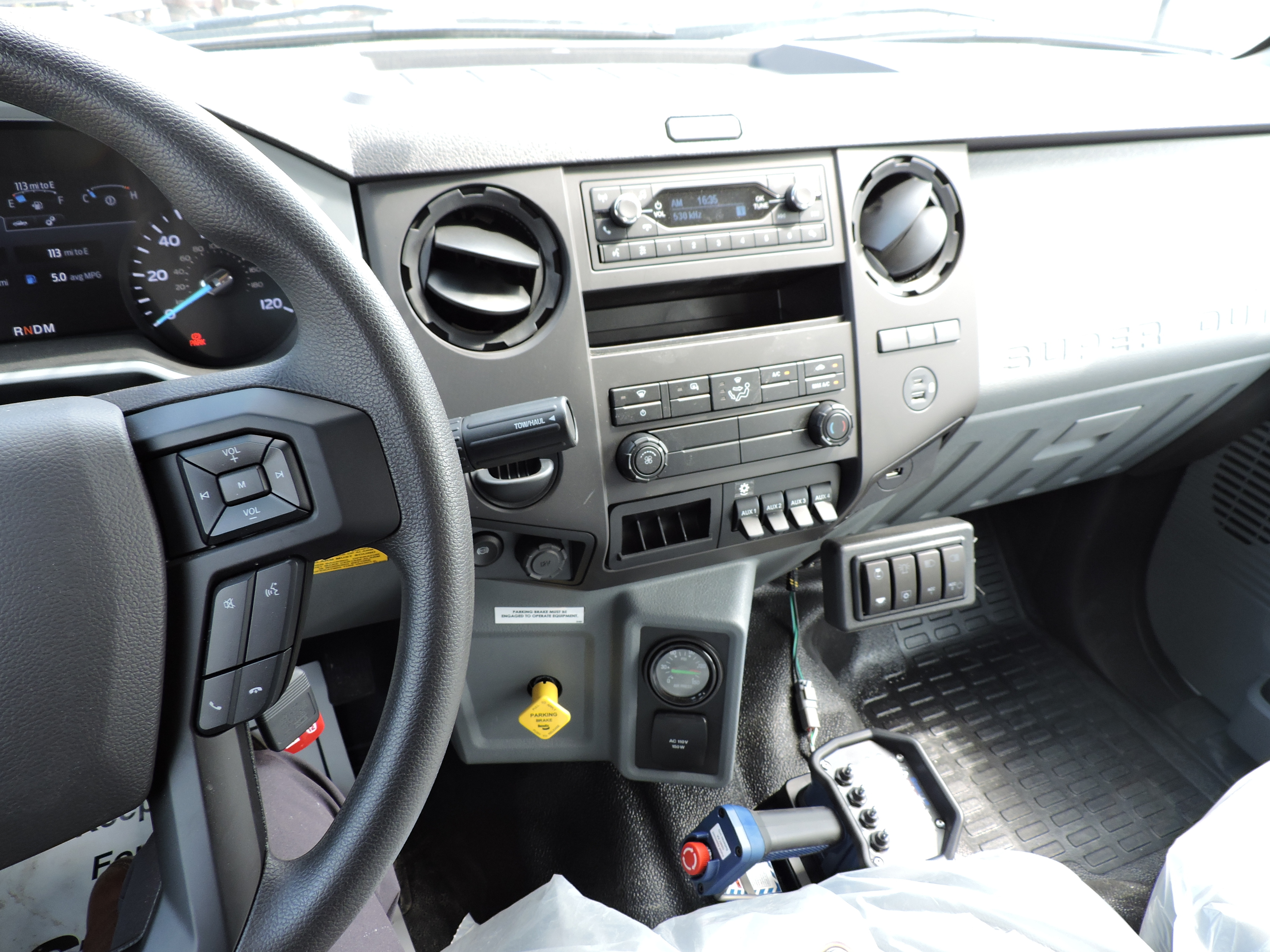

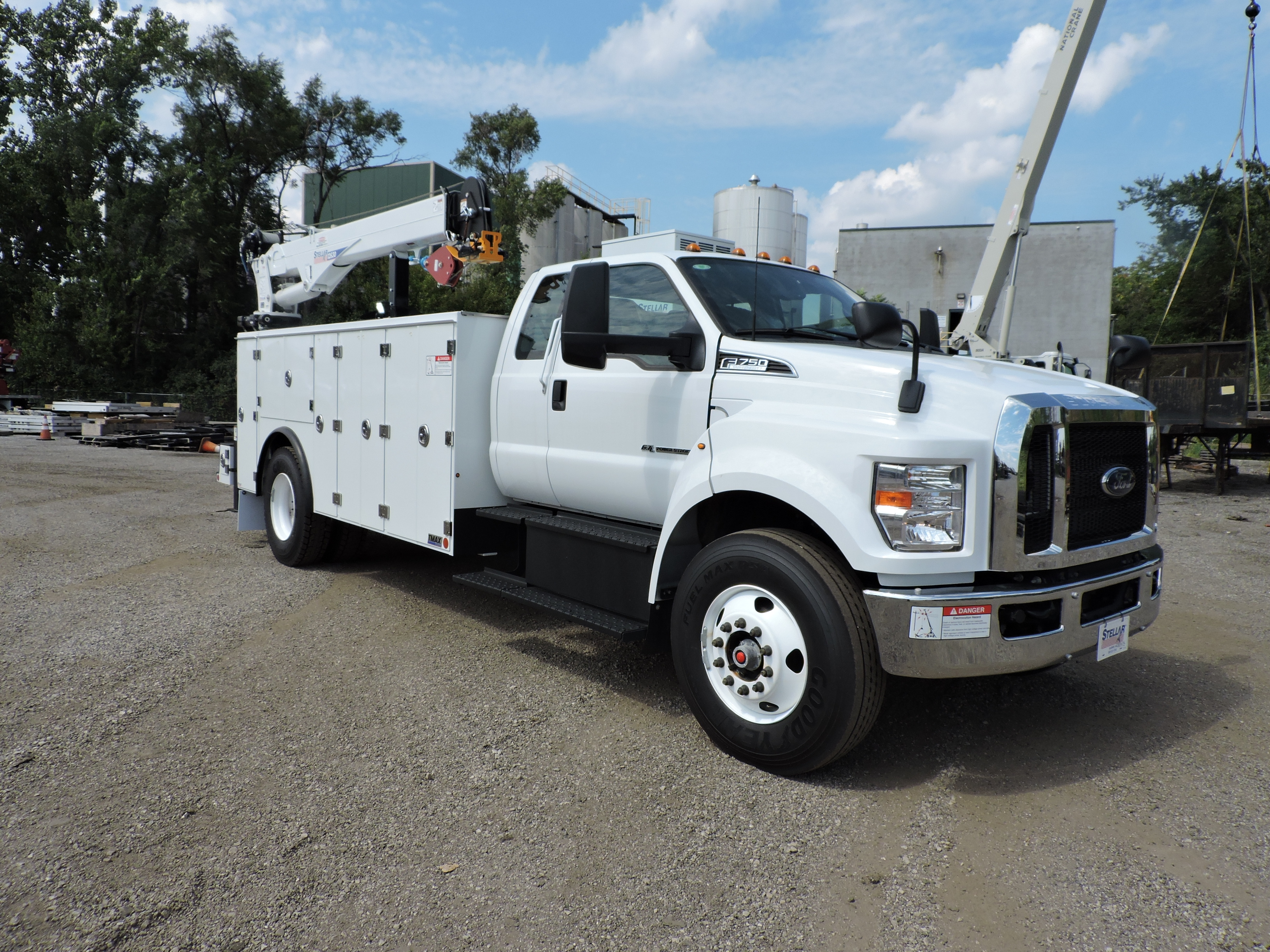

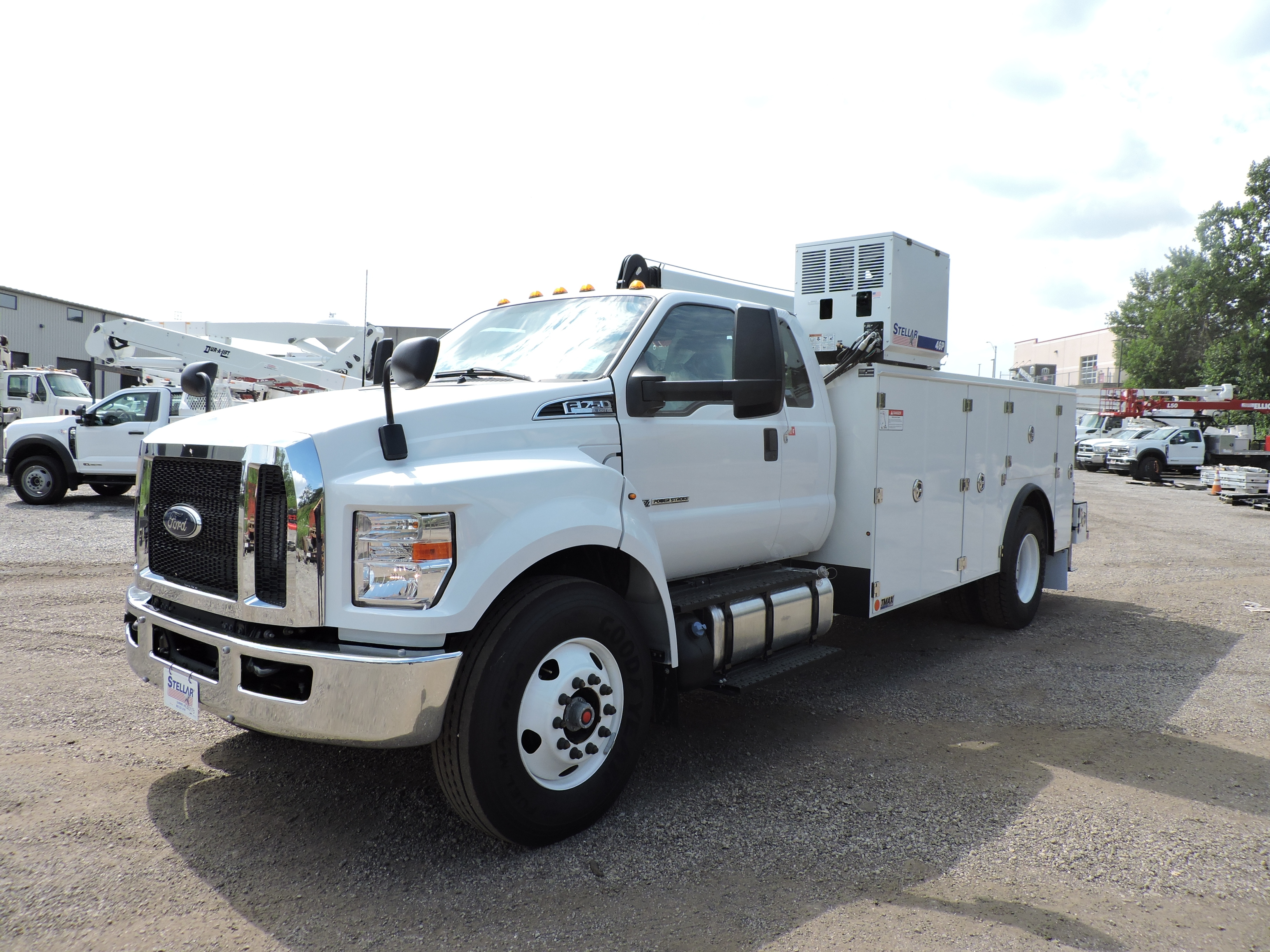

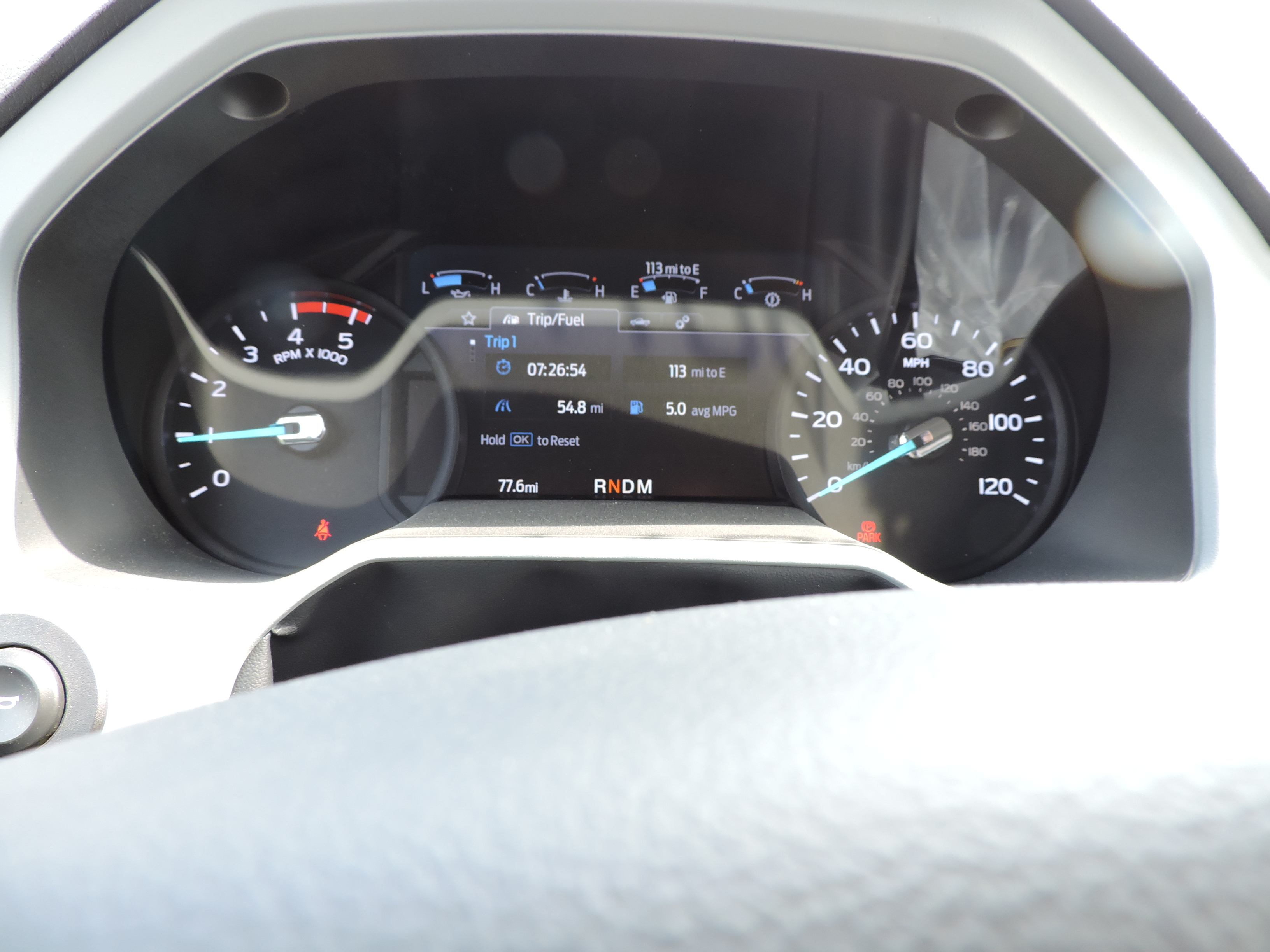

2026 Ford F750 Supercab:

• Extended cab
• 33,000# GVW
• 6.7L Power stroke V8 turbo diesel – 270HP
• Air brakes
• Exhaust brake
• Engine block heater
• Ford torqshfit HD 10-speed automatic
• Front axle: 12,000#
• Rear axle: 21,000#
• Chrome bumper
