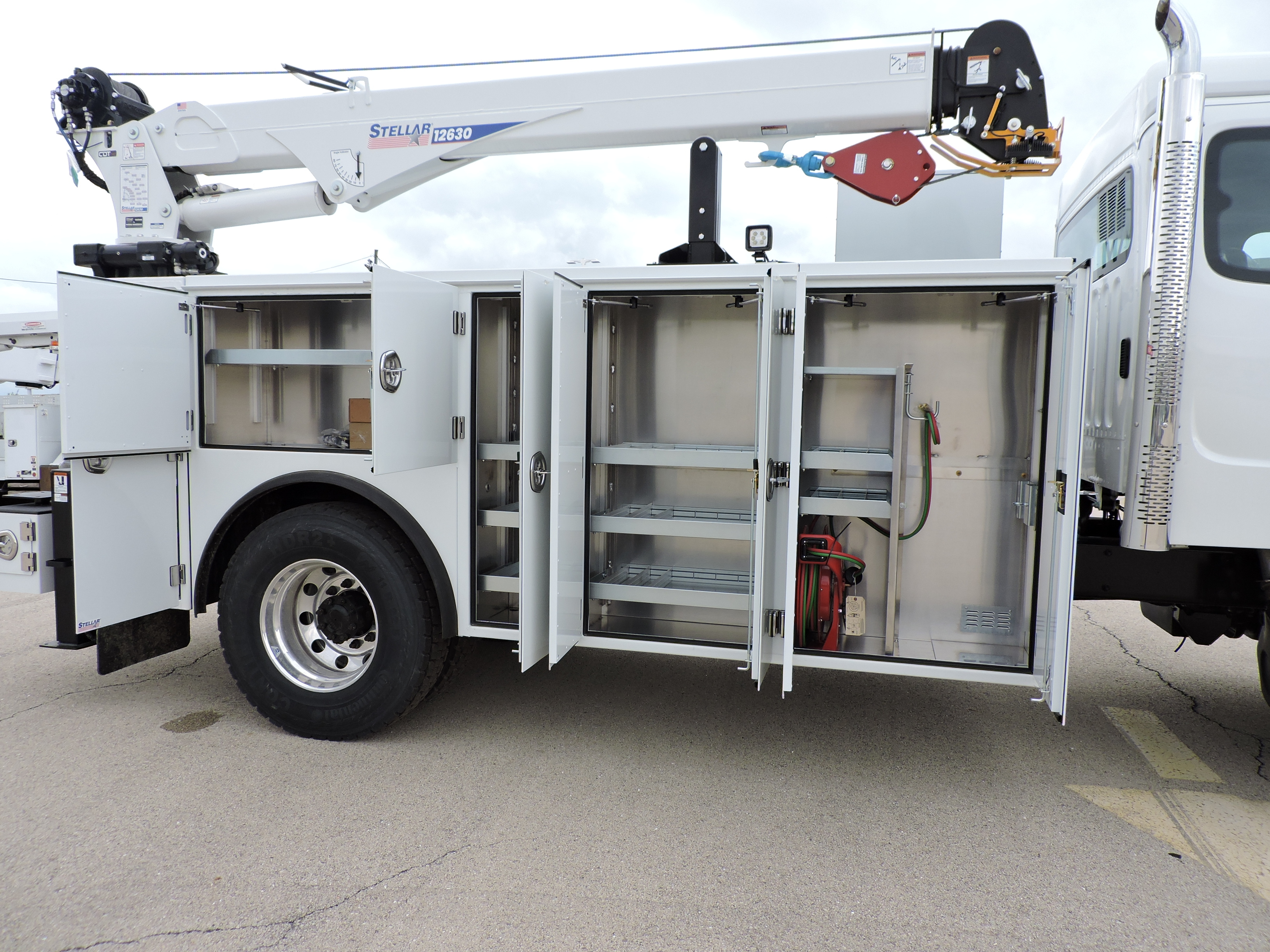

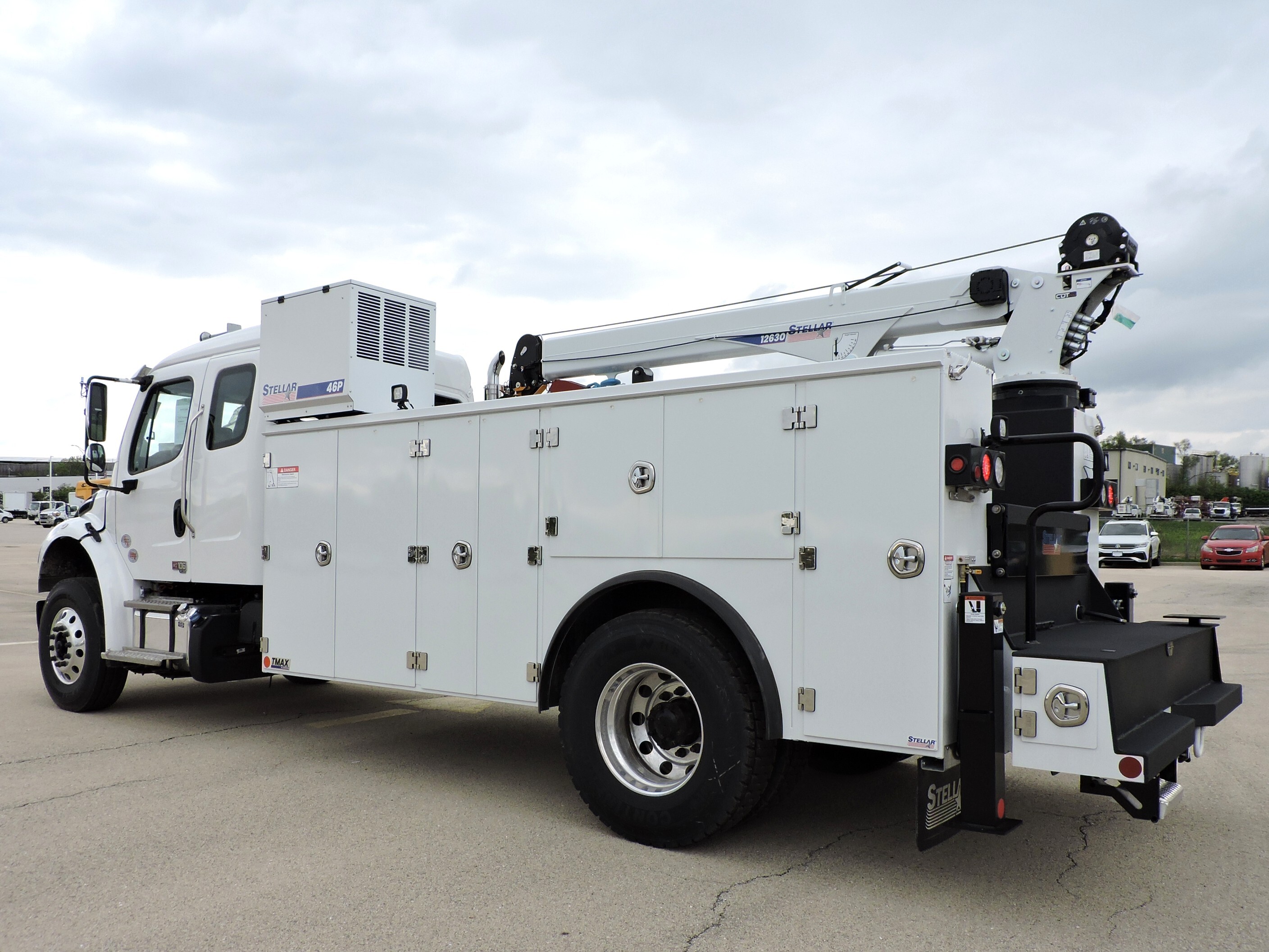

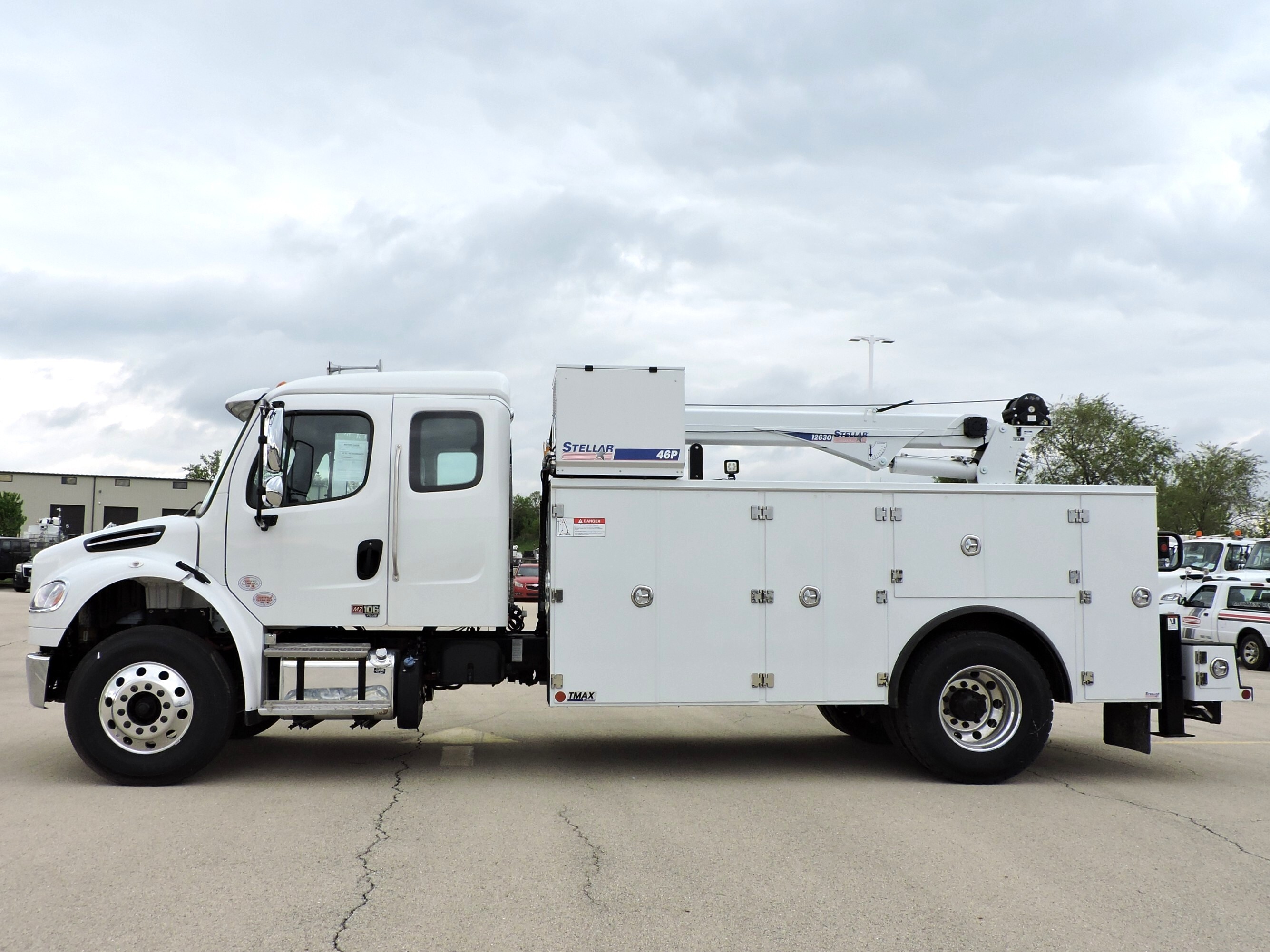

Stellar TMAX2-14 Aluminum Mechanic Body:

• Aluminum doors and side packs
• Torsion box understructure with isolated steel crane compartment
• Master-Lock system
• 168” long
• Six recessed cargo tie-downs

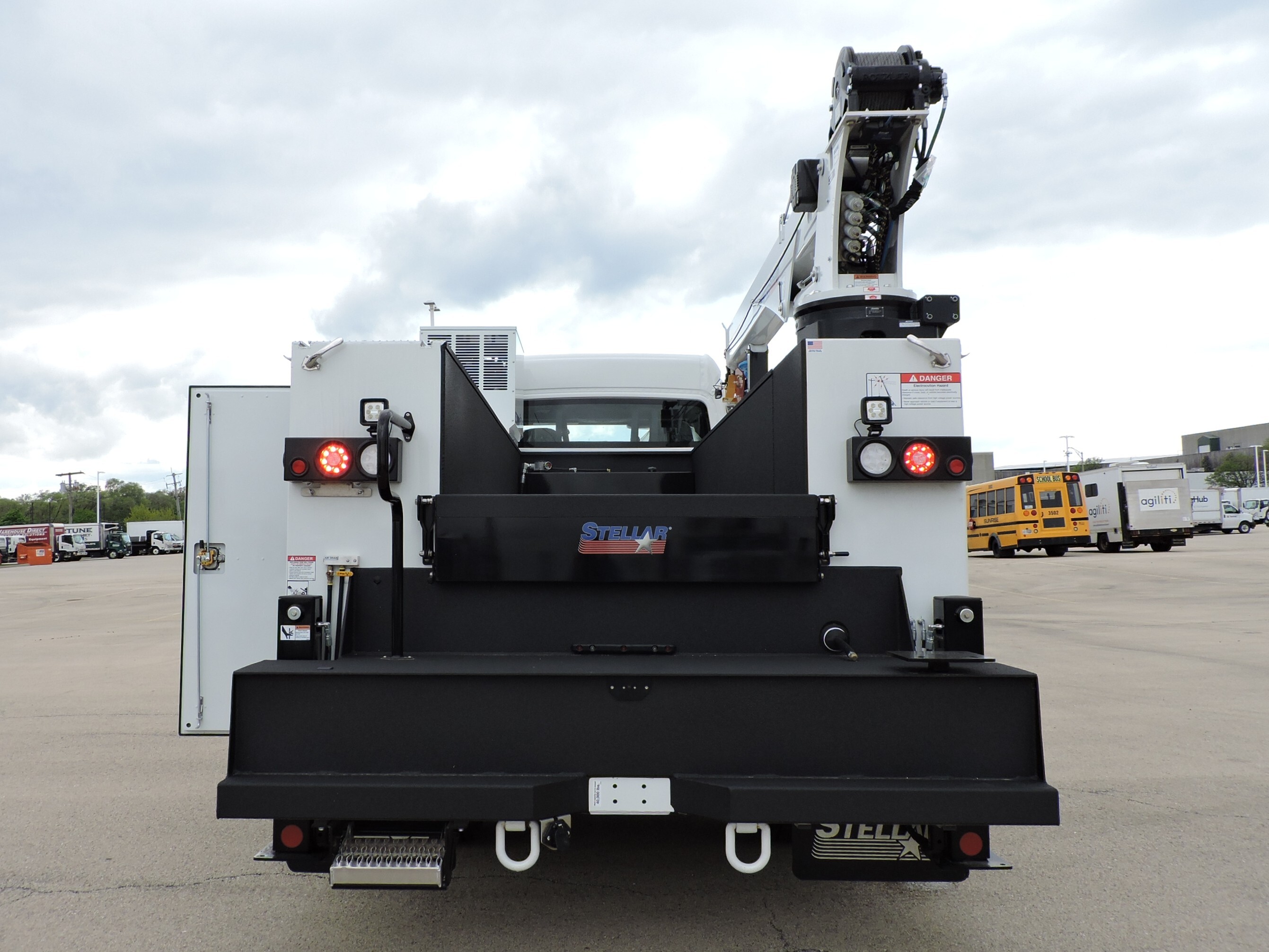

• 12” alum tailgate

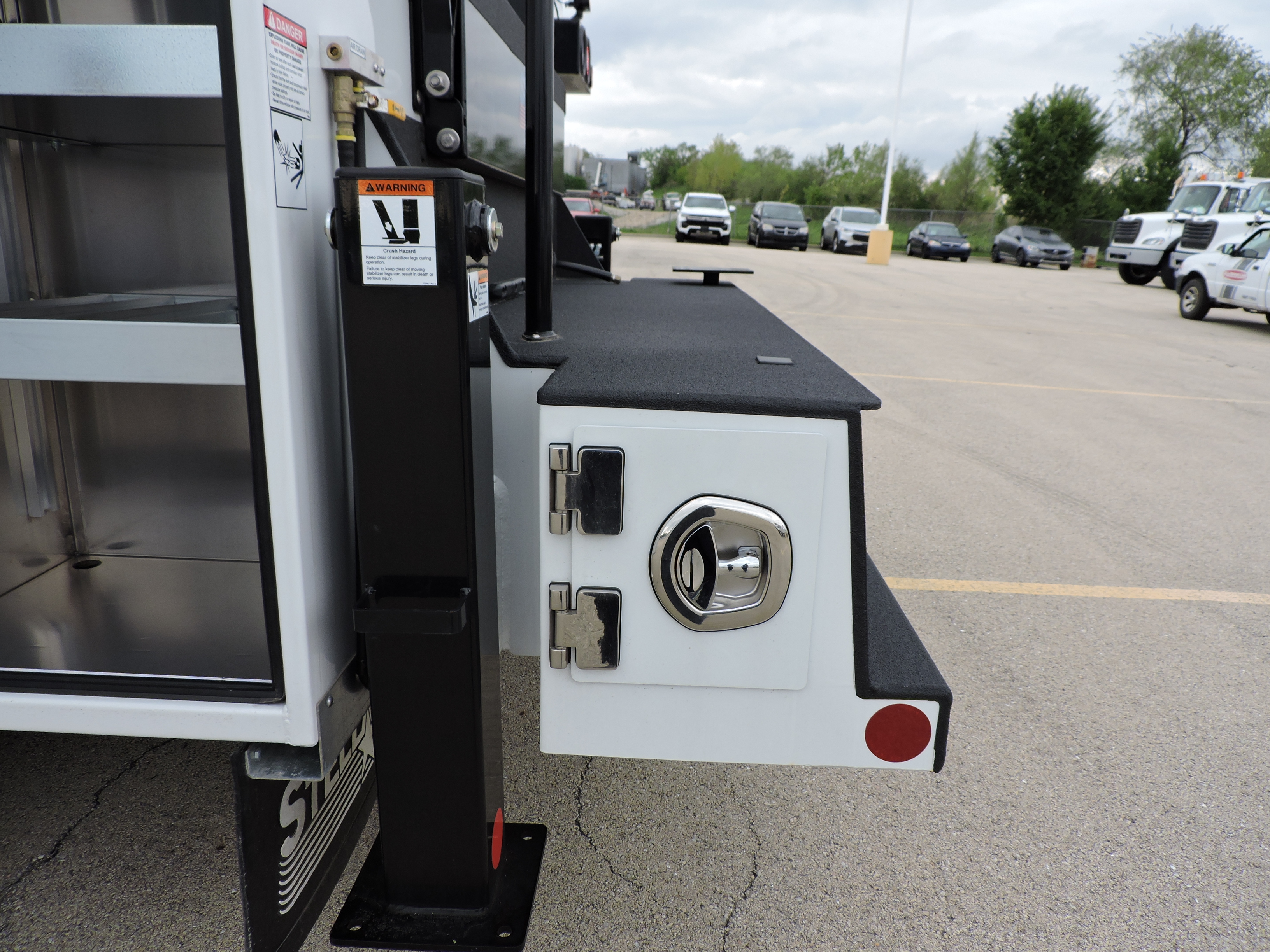

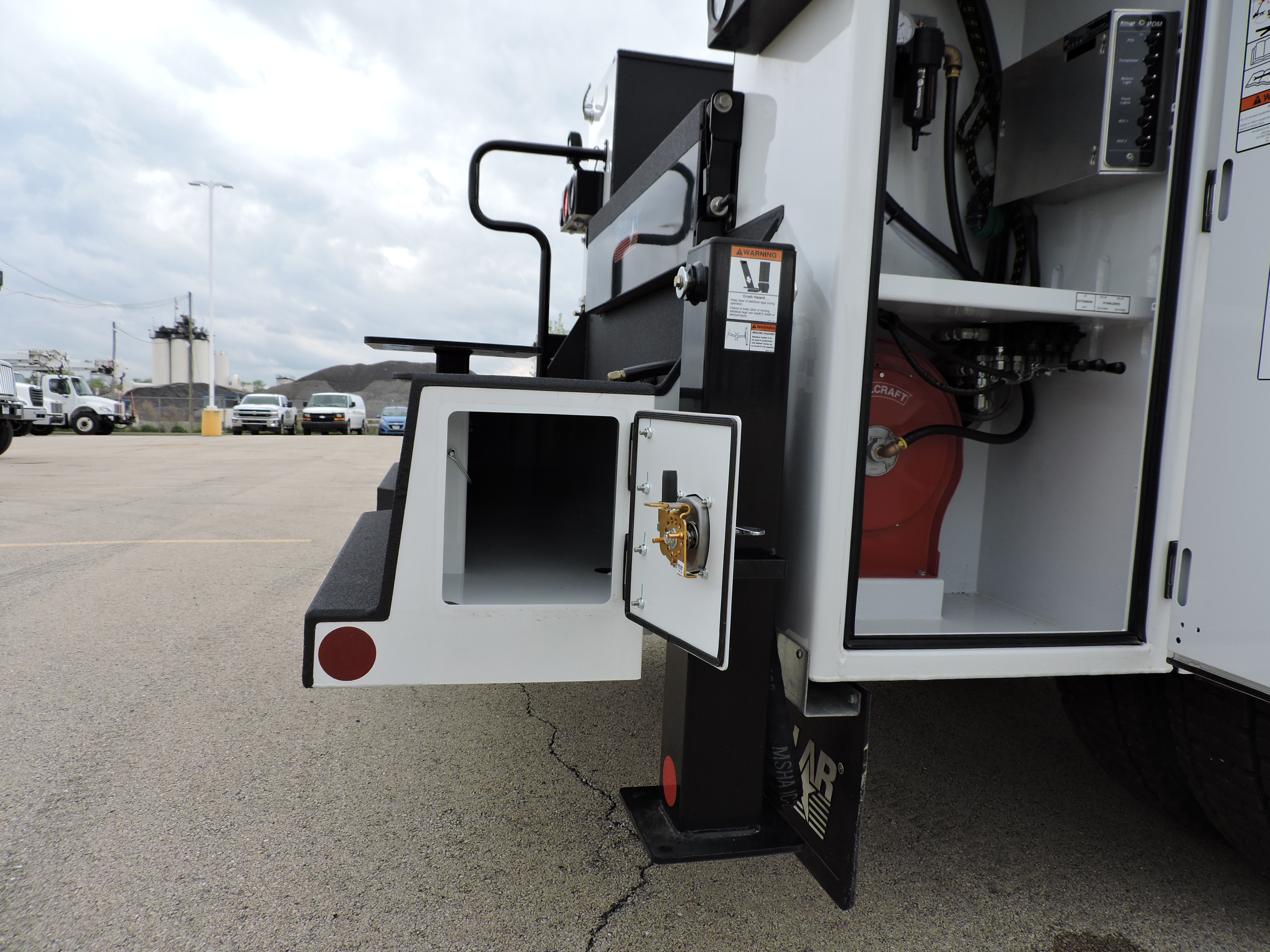

• 21” work bench bumper with thru compartment
• Vise mounting plate
• Step, slide out for TMAX mechanics work bench bumper
• Rubber fenderettes
• All compartments raised to 60” H
• Overlapped doors on SS1V/CS1V and horizontal compartments
• 2- & 3-point stainless steel compression latches
• Stainless steel “Billet Style” hinges
• Spring loaded door stops
• Dual-seal automotive type compartment weather seal
• LED compartment lights

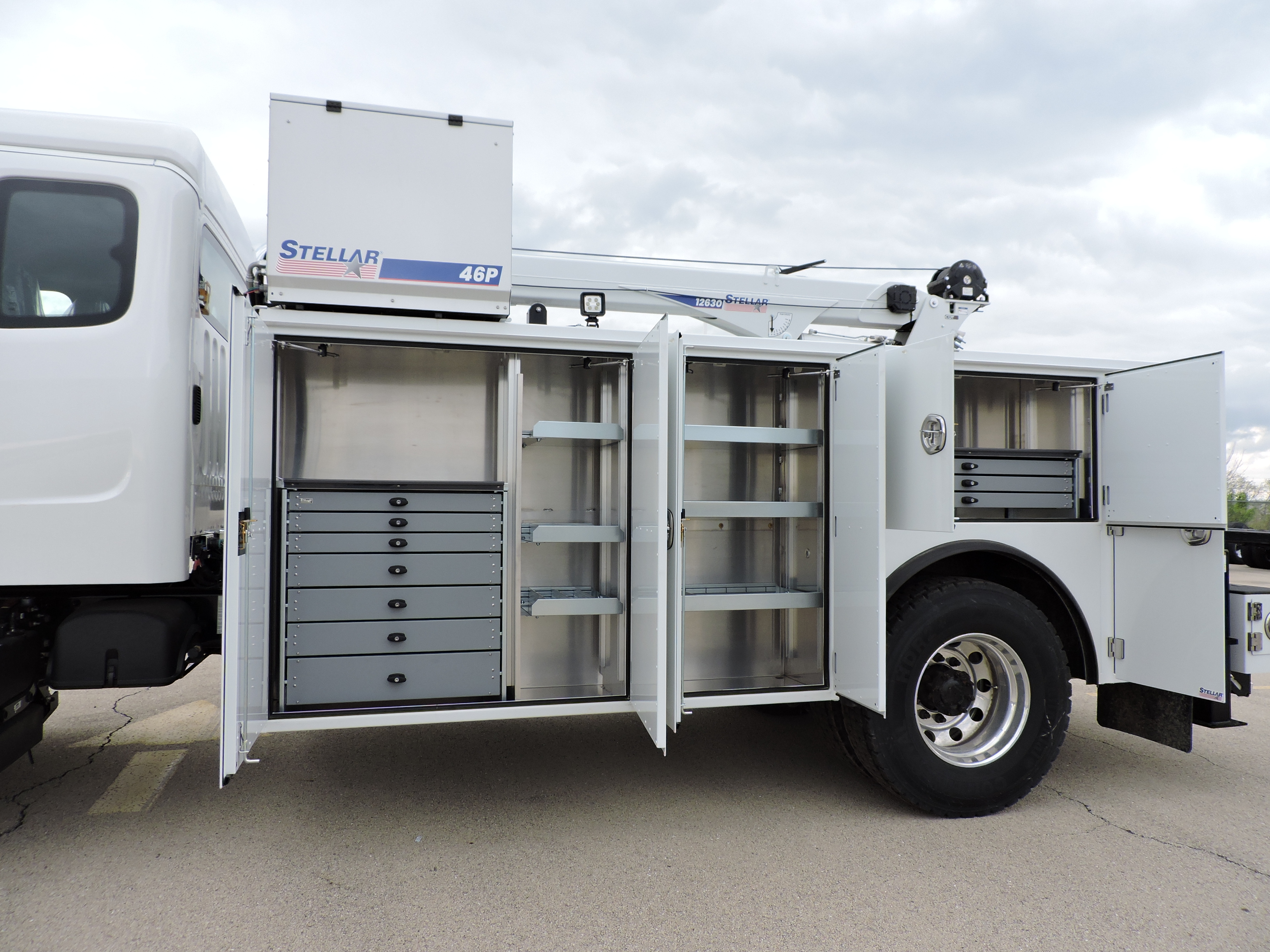

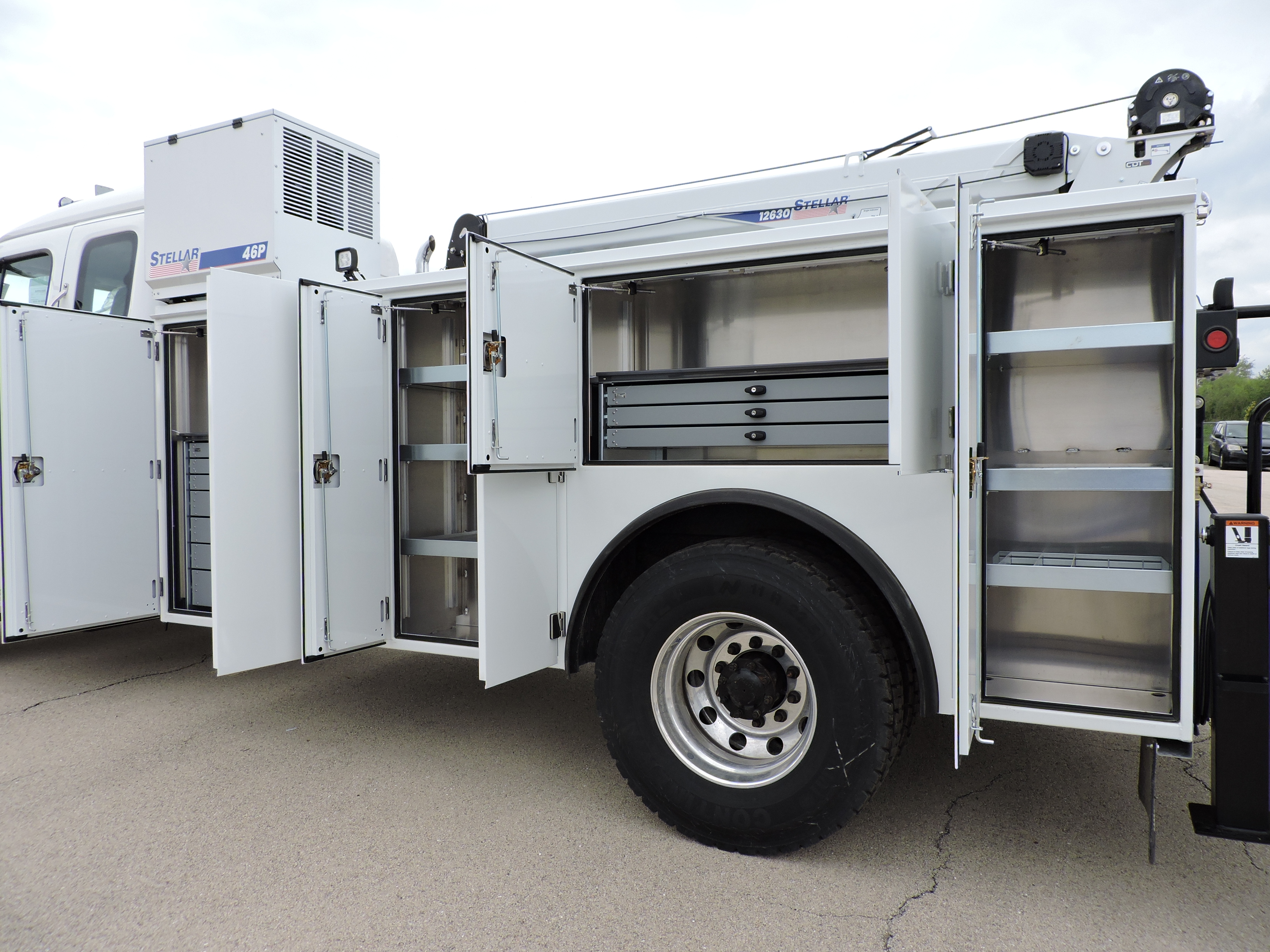

• SS1VF–Drawer set
• SS1VR–3 shelves w/ 3 dividers
• SS2V-One shelf w/ 3 dividers
• SS H–Drawer set
• SS R–3 shelves w/ 3 dividers
• CS1V–Divider kit with shelves and Oxy-Acetyln bottle holder
• CS2V–3 shelves w/ 3 dividers
• CS3V–3 shelves w/ 3 dividers
• CS H–Shelf w/ 3 dividers

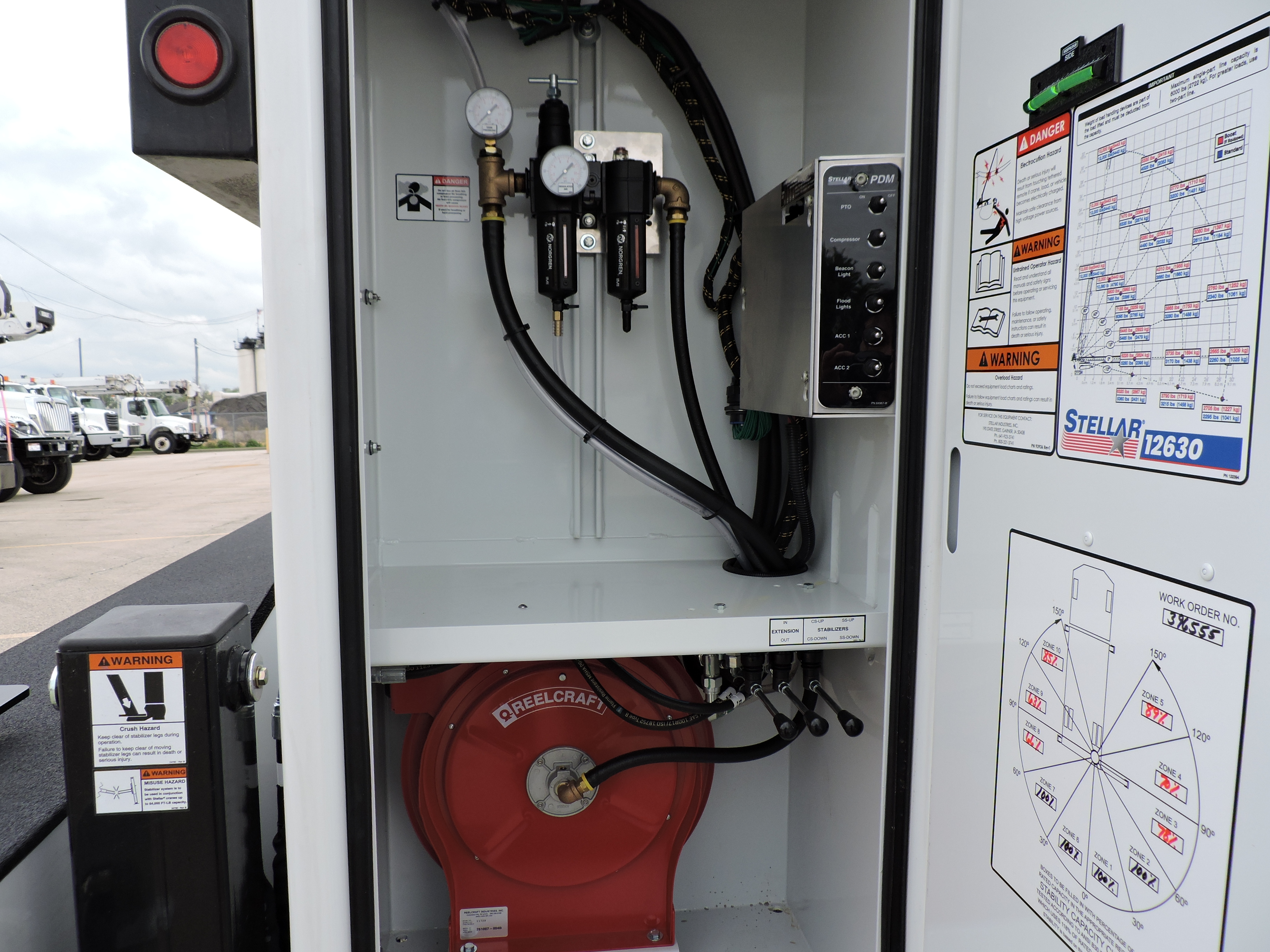

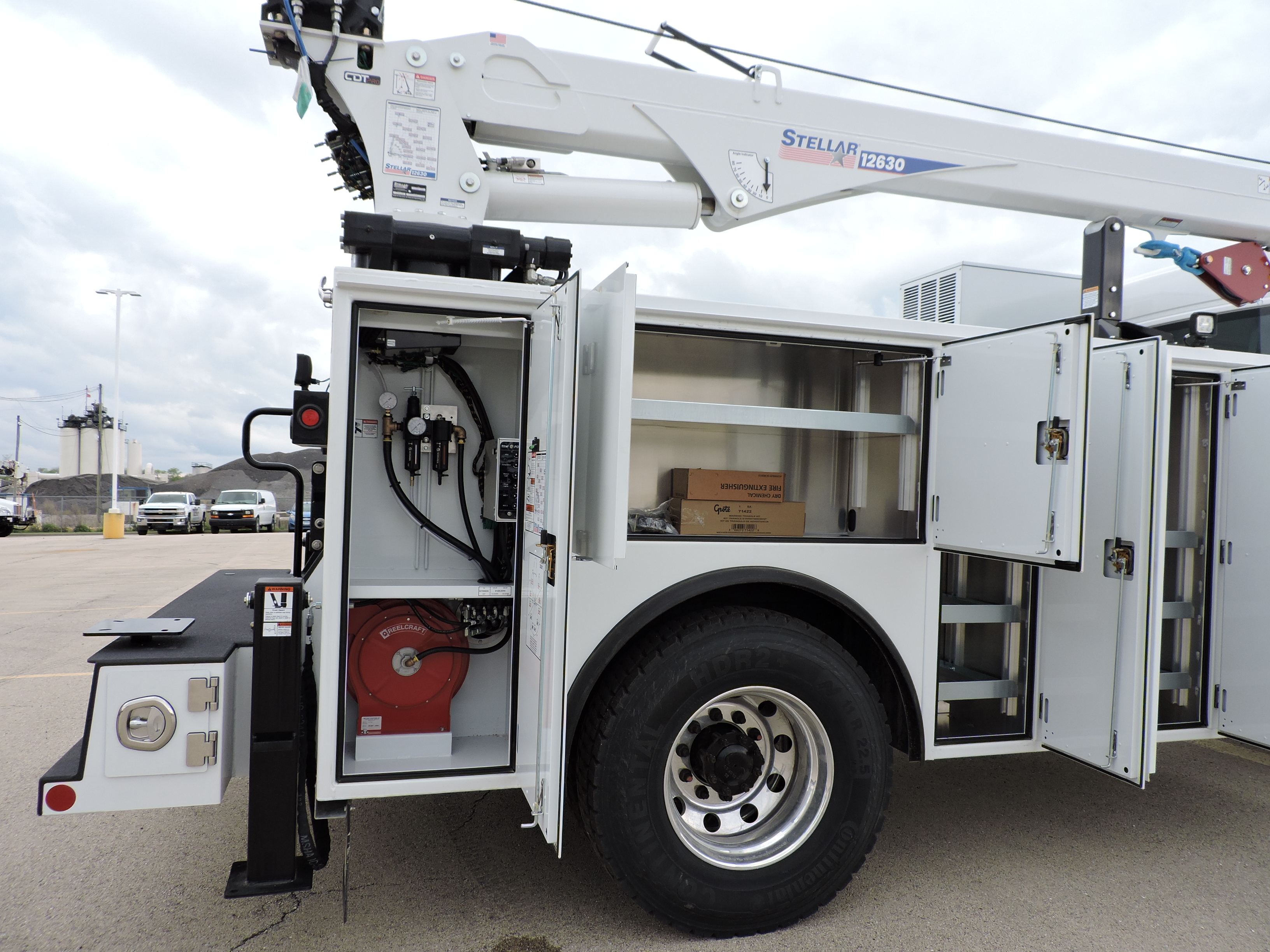

• CS R–½” x 50’ hose reel with roller guide
• 22-gal air tanks
• FLR system
• 2 LED floodlights
• Adjustable boom support
• Weld-on receiver hitch

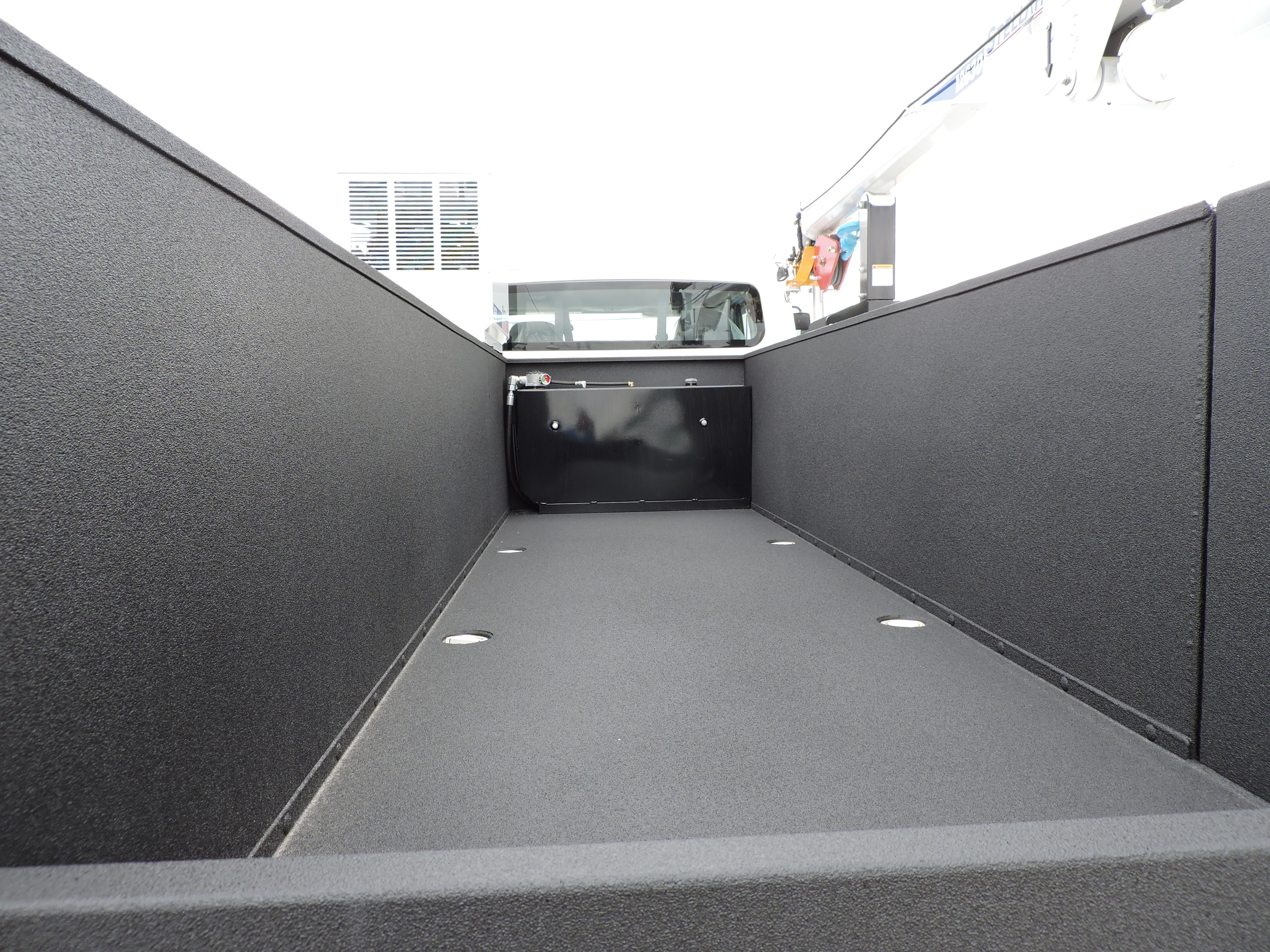

• Spray-on bed liner
• Rock guard kit
• Stellar 46P hydraulic driven air compressor

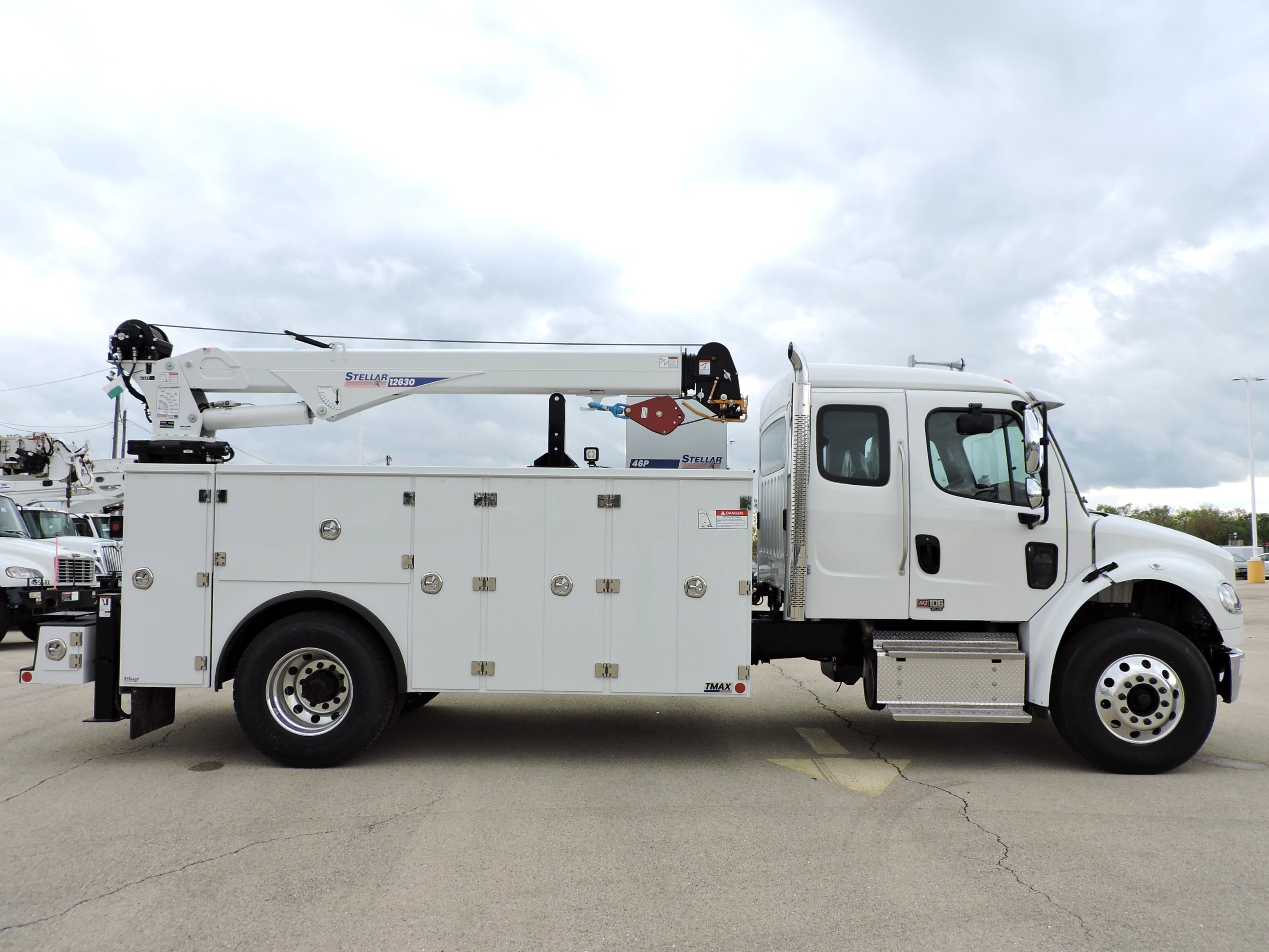

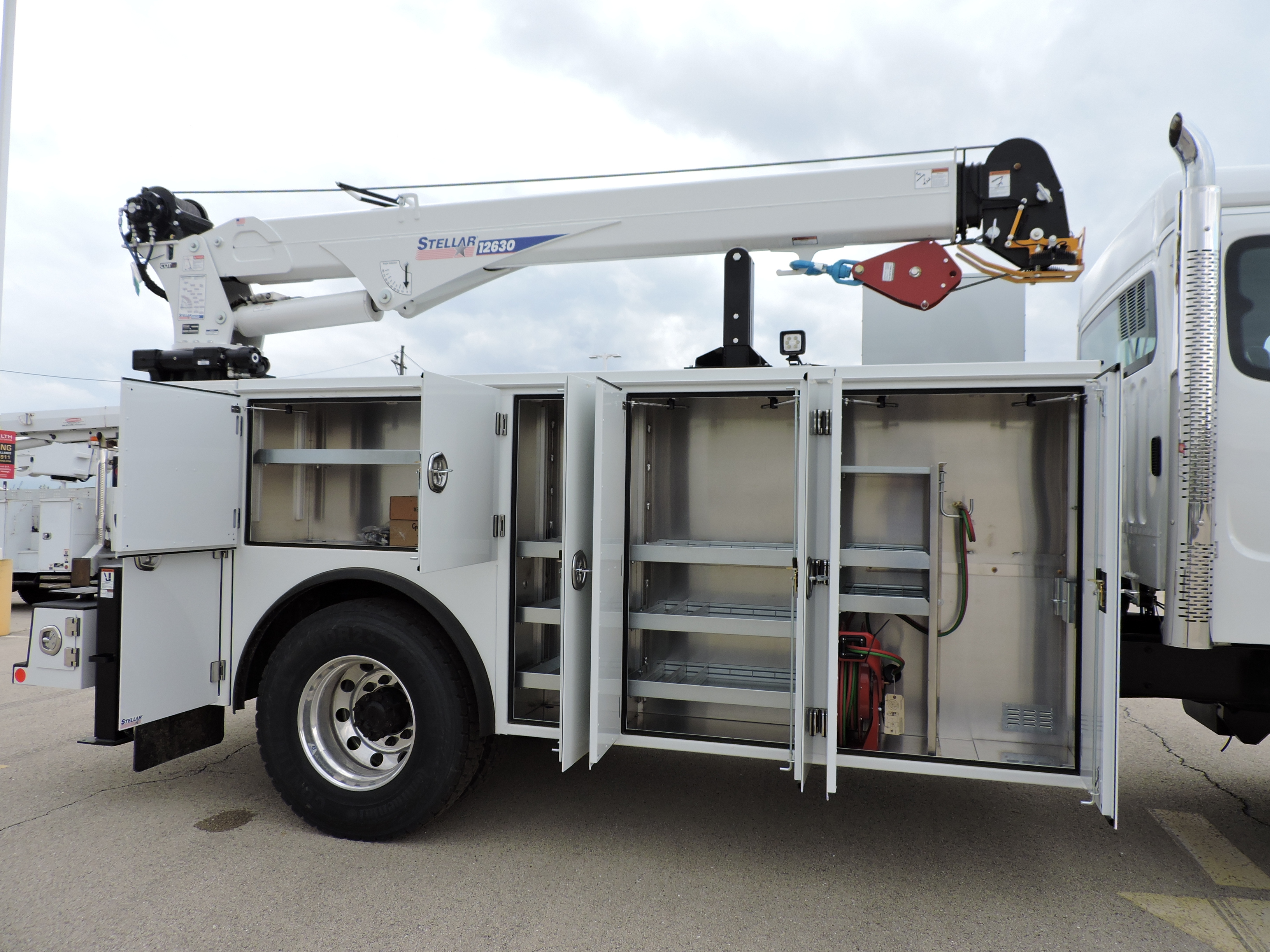

Stellar 12630 telescopic crane:

• 77,800 ft/lb rated when in boost mode
• 12,000 lb max capacity at 6’5” radius when in boost mode
• 30’ max hydraulic reach
• Octagon boom
• Boom elevation: -10 to +80 degree
• 400 degree non-continuous rotation

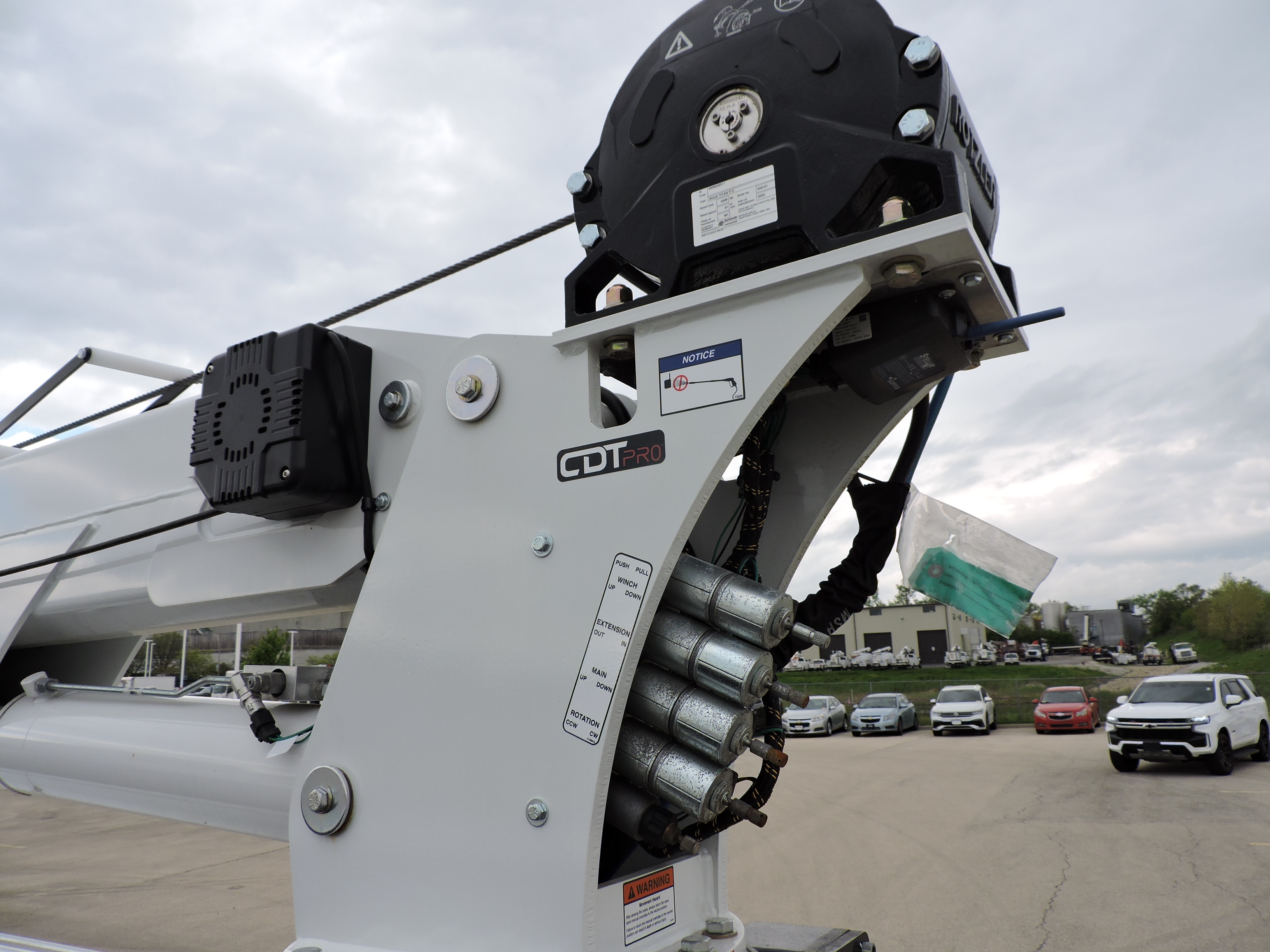

• Planetary winch with 100’ of 7/16” wire rope
• Max line pull speed 55ft/min
• Quick release snatch block stow
• Proportional radio remote control
• CDTplus boost mode
• On-Demand speed control
• Dual LED Trilliant lights - mounted on boom tip

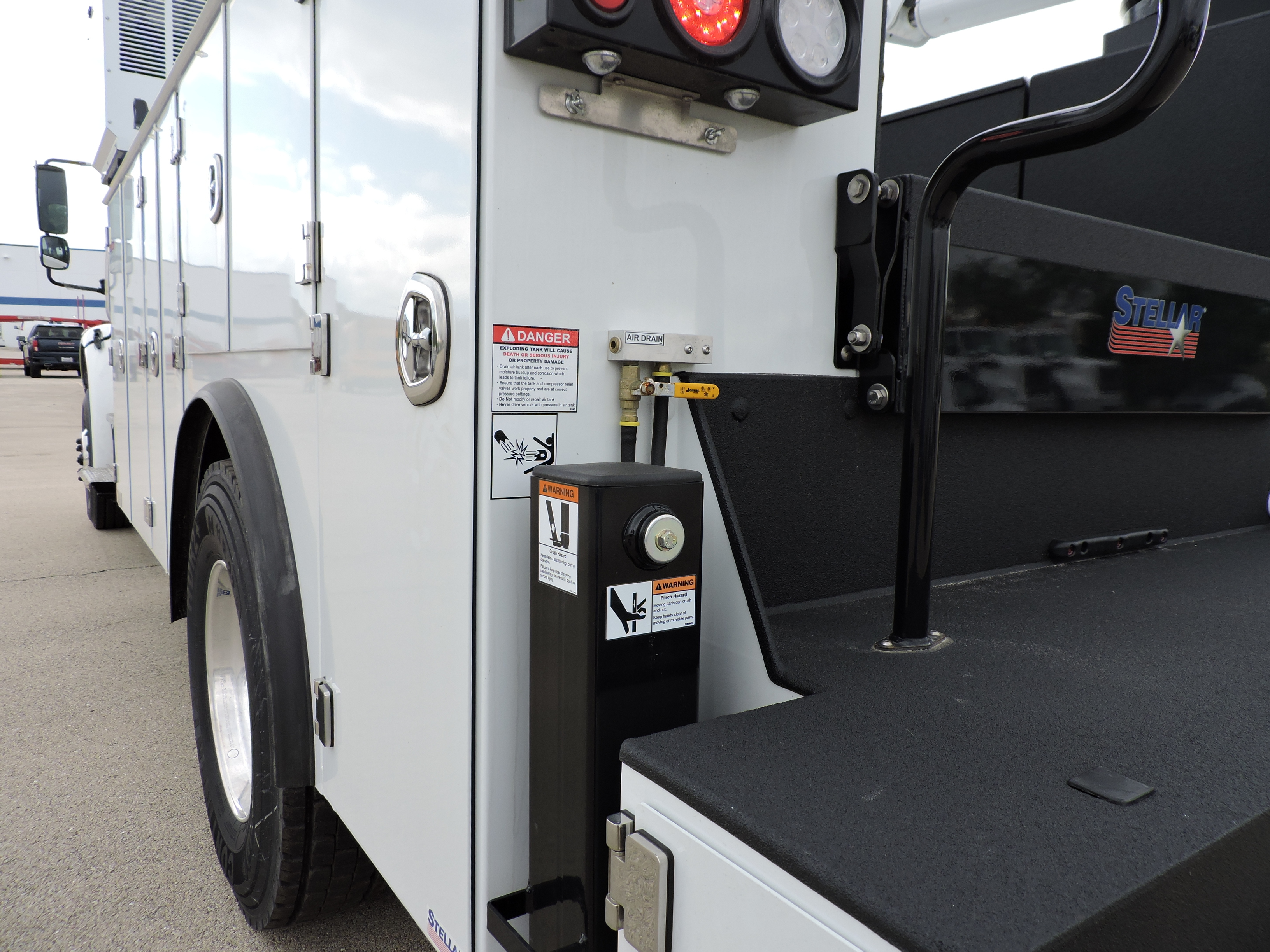

• Hydraulic stabilizers

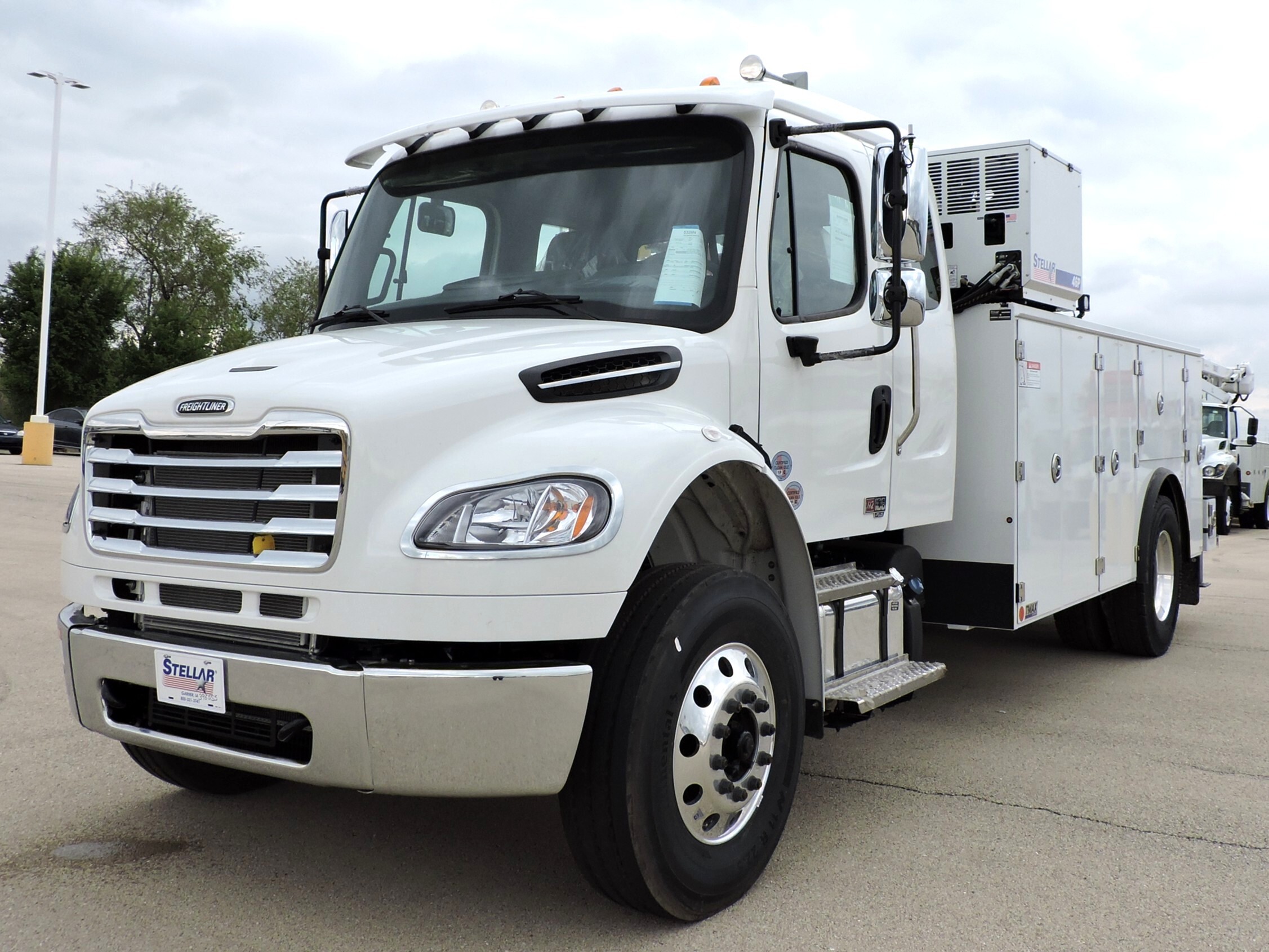

2026 Freightliner M2 106 Plus:

• Extended cab
• 33,000 lb GVW
• Cummins L9 engine – 350 hp at 2200 rpm, 1050 ft./lb at 1200 RPM
• Engine brake
• Engine block heater
• Allison 3000 RDS automatic transmission
• 219” wheelbase
• Front axle: 12,000 lb w/ Taperleaf suspension
• Rear axle: 21,000 lb w/ Airliner suspension
• Mounted front tow hooks

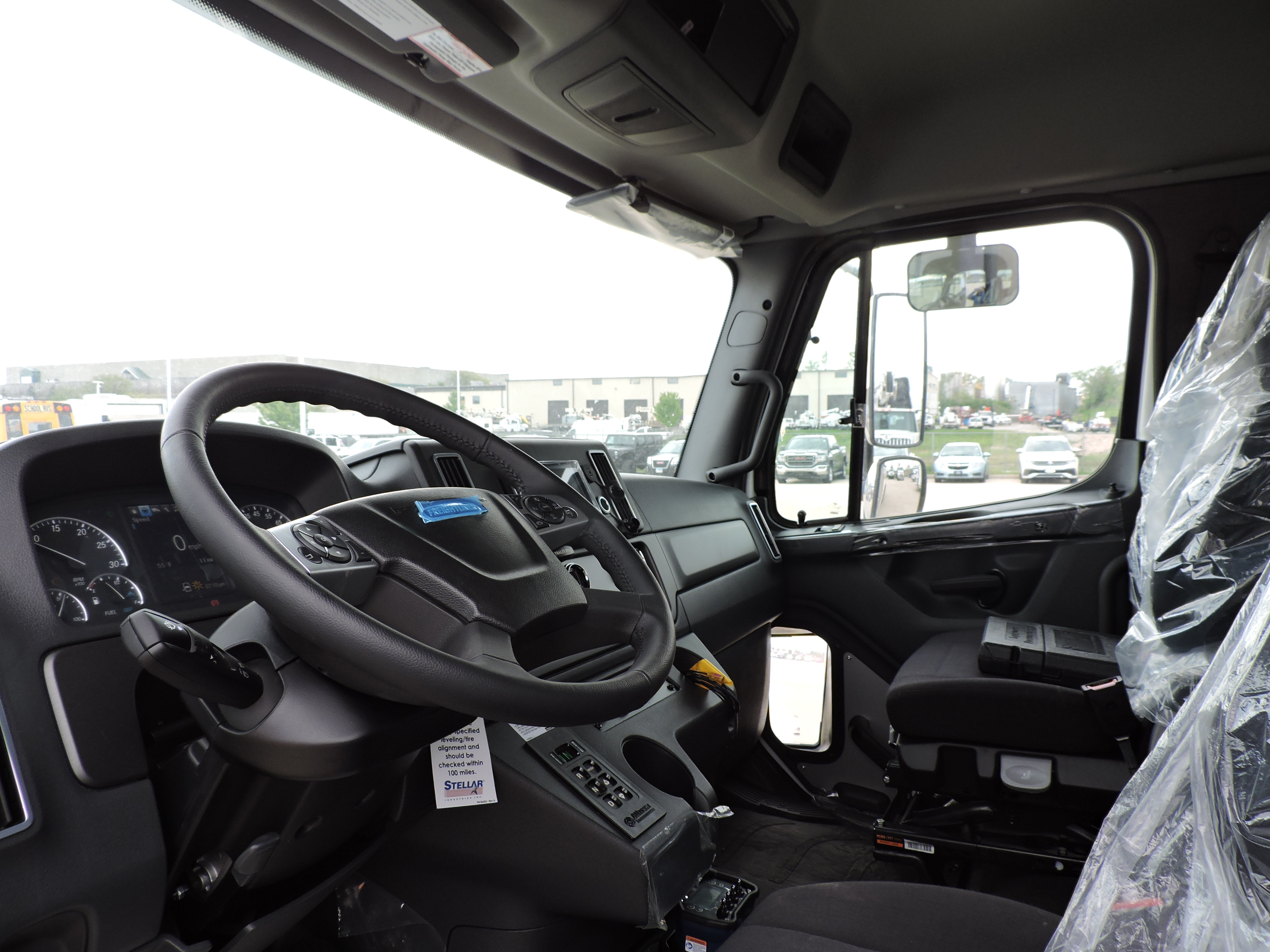

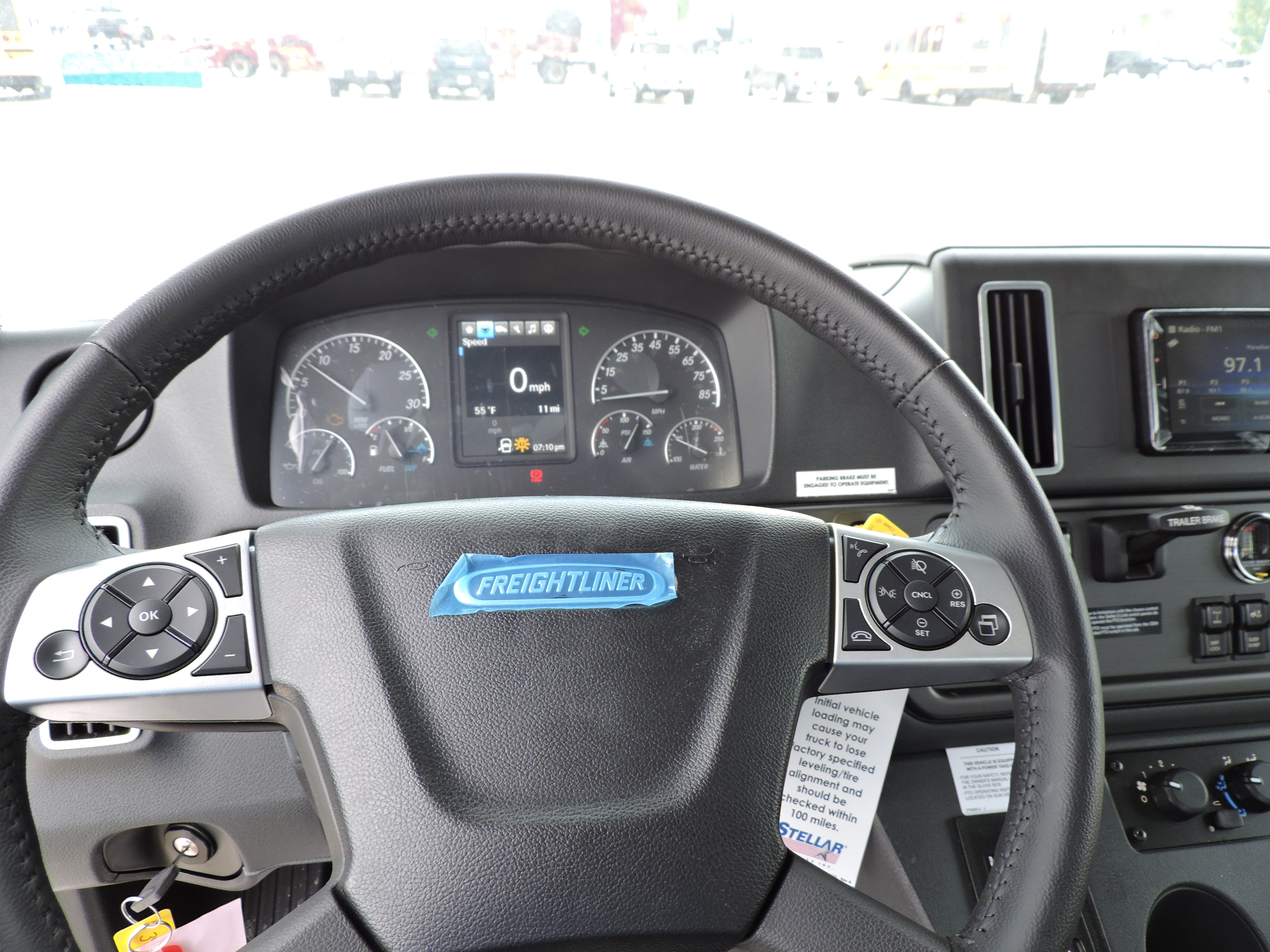

• Telescope and tilt steering column
• Driver and passenger’s seat - high back air suspension with lumbar support, cloth, dual armrests

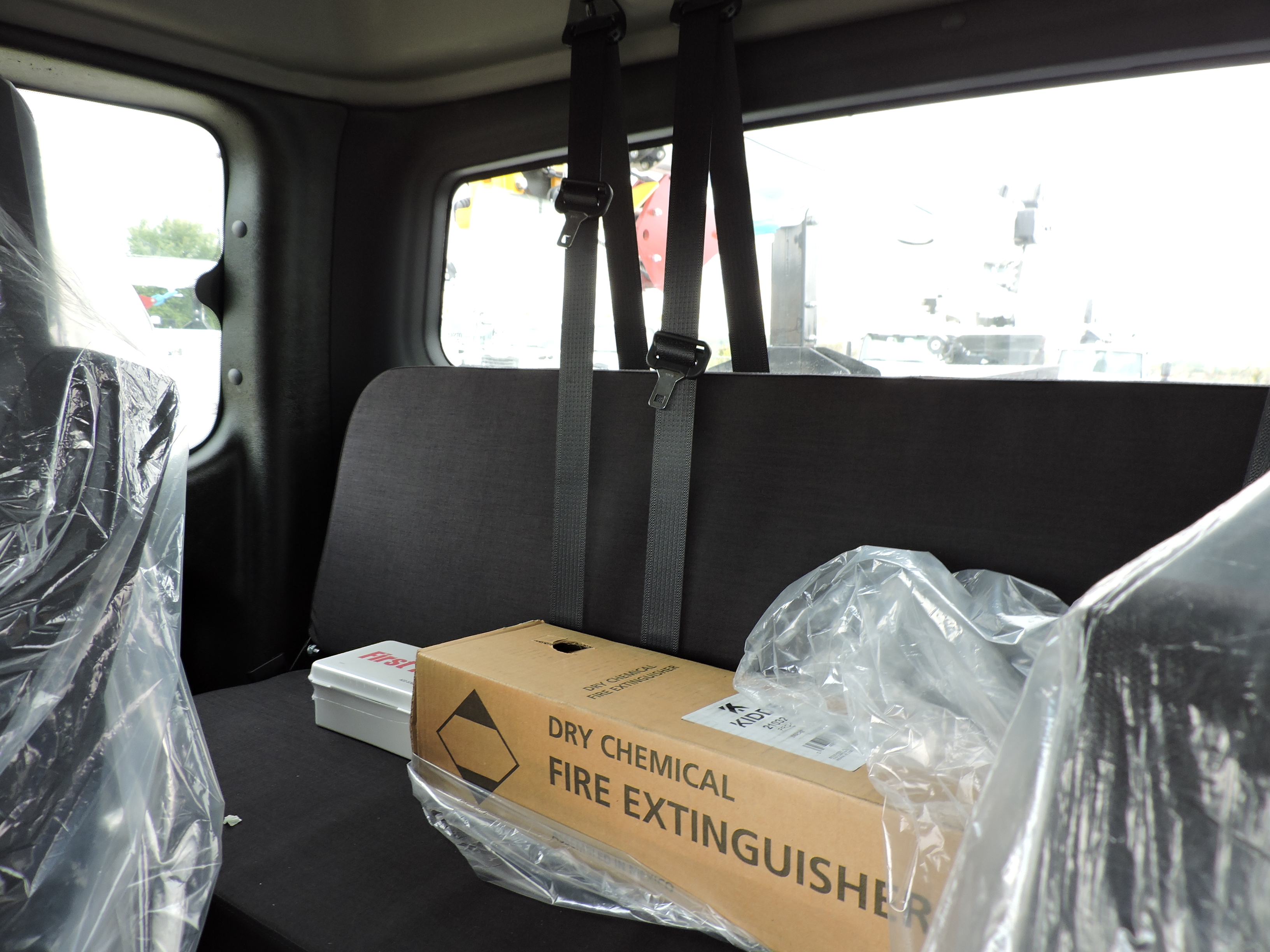

• Full width rear bench seat
• Composite exterior sun visor
• Air brakes
• Heated air dryer
• Air cab
• 50-gal fuel tank
• 11R22.5 tires
• Aluminum wheels
• Air conditioning
• Power windows

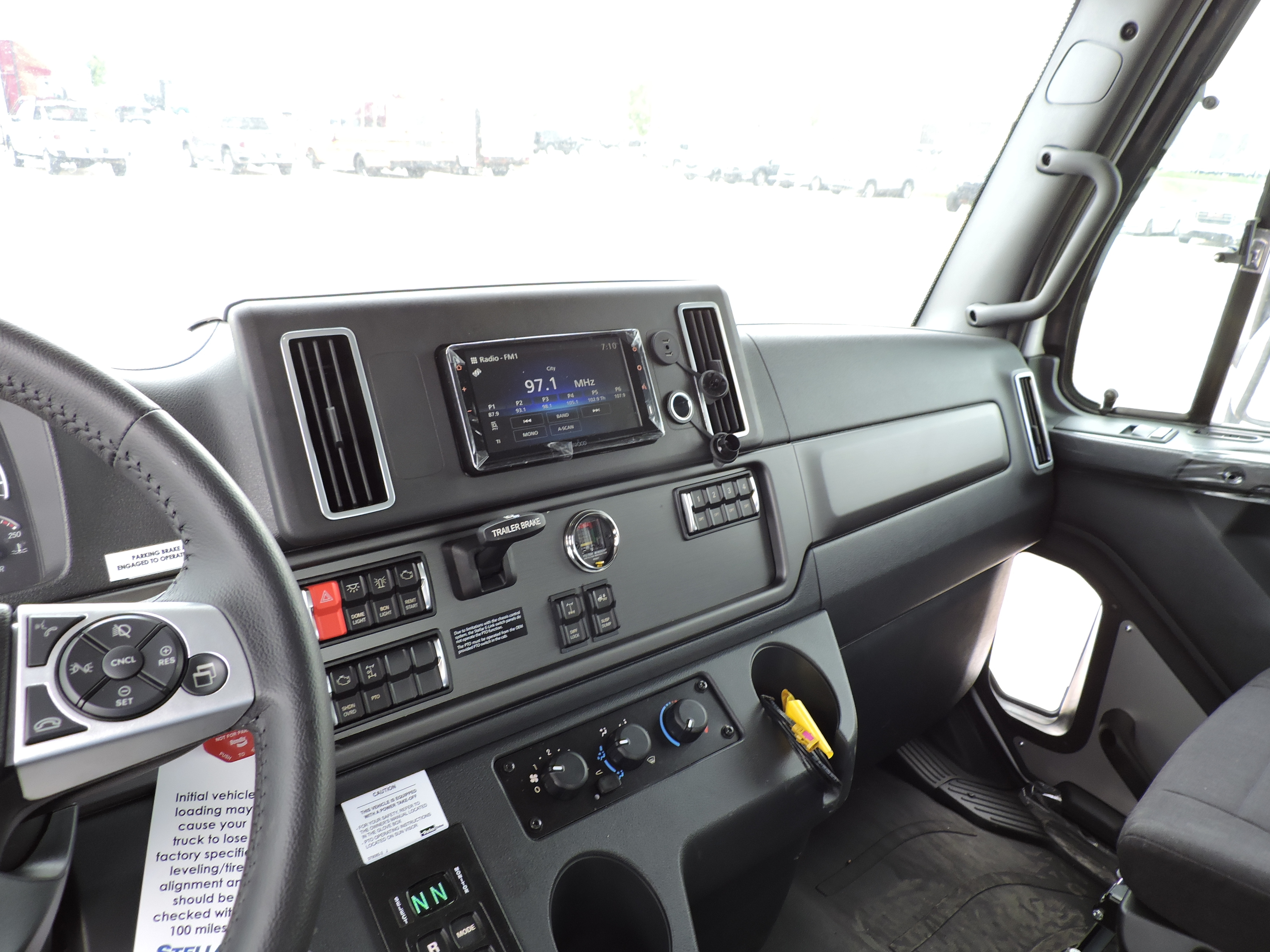

• AM/FM/WB/USB radio w/ Bluetooth
• Heated and motorized mirrors
• RH down view mirror
