Stock# 44670

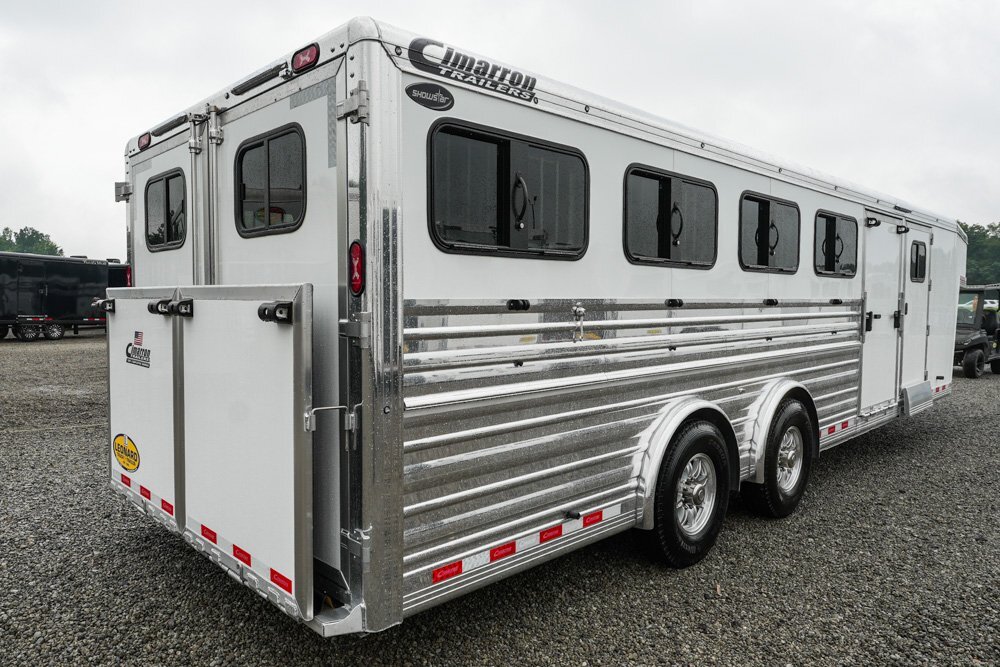

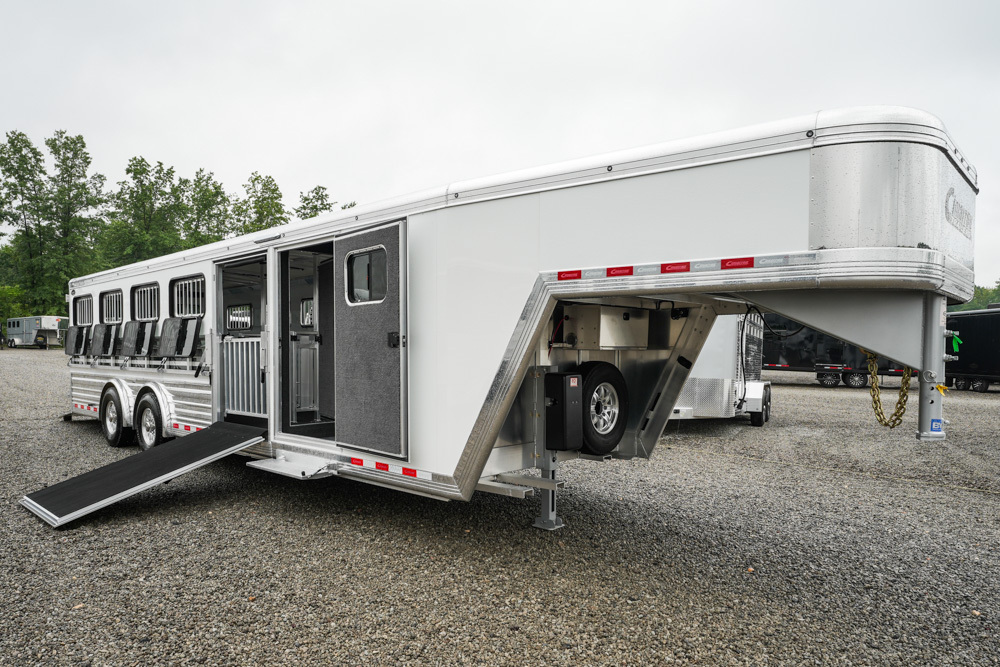

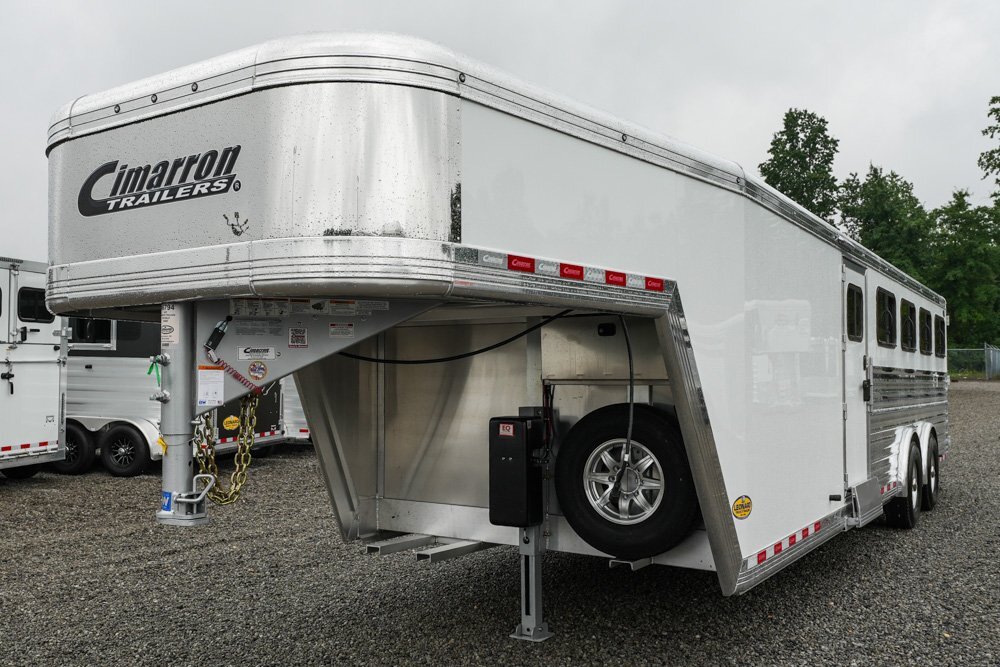

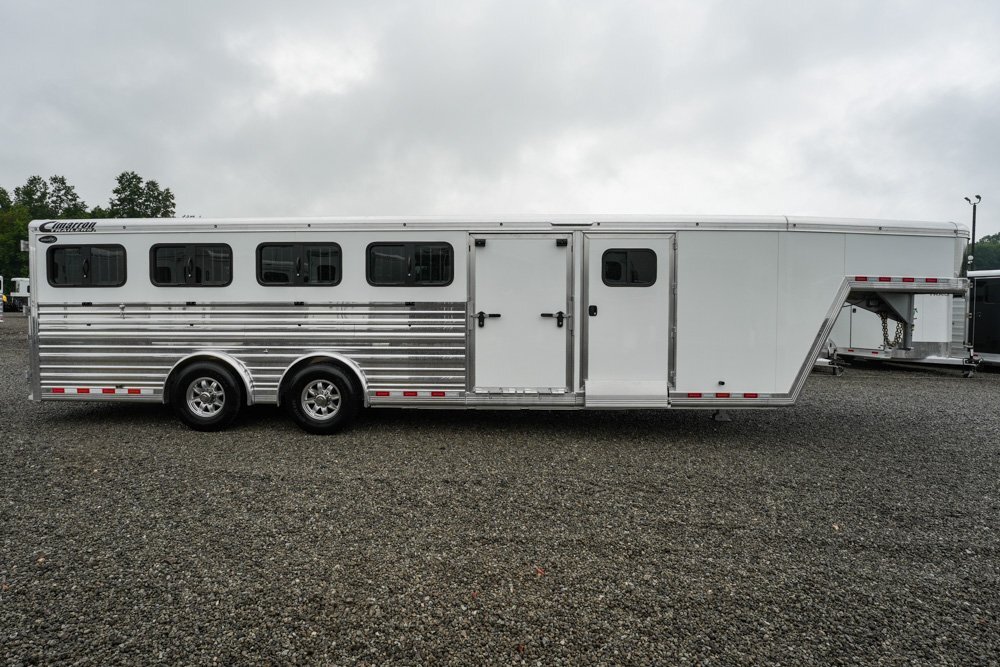

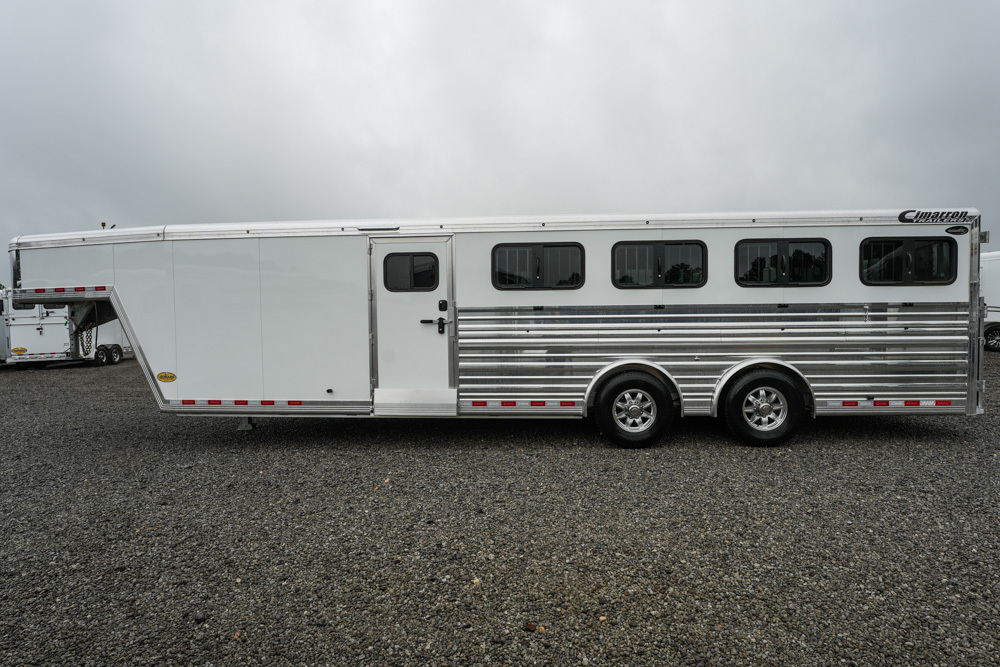

New 2027 Cimarron SS10GLX Gooseneck Stock Trailer

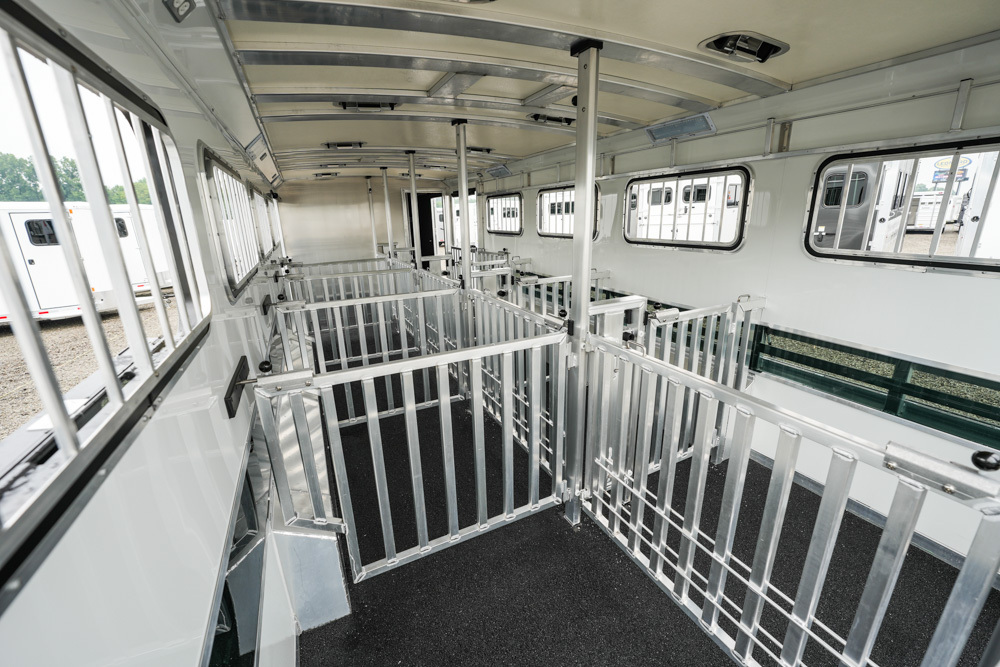

The Showstar Low Profile Trailer series makes hauling small animals a breeze. Cimarron's dynamic design is perfectly suited for pigs, sheep, goats, and more.

Model: SS10GLX

Warranty:

• 8yr: Structural
• 3yr: Body and Hardware

Overall Equipment

• Dimensions:
  • Box Length: 26' - 0"
  • Box Width: 8' - 0"
  • Box Height: 6' - 4"
  • Gooseneck (GN) Length: 8' - 2"
  • GN Drop Wall: 50" (For 4x4 Vehicle)
  • GN Structure: Medium Duty
• Undercarriage:
  • GVWR: 13,680 lbs
  • Axles: 7,000 lb Dexter Torflex Axles (8 Bolt Hubs w/ 9/16" studs)
  • Axle Articulation: 10 Degree Up
  • Brakes: Electric (All Wheel)

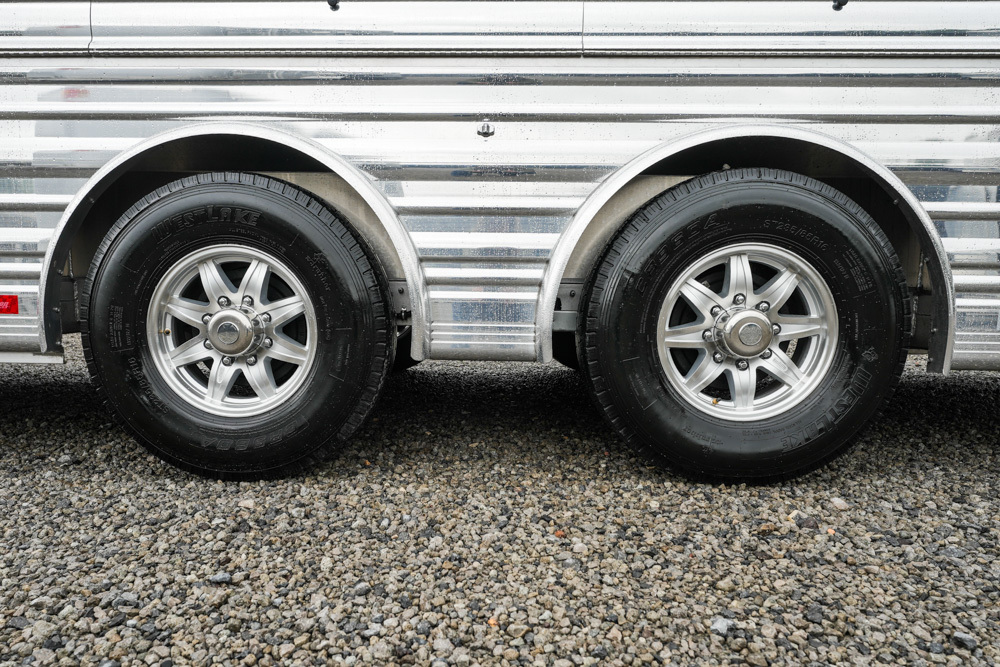

  • Tires: Goodyear ST 235/80 R16" LR-E
  • Wheels: 8 Hole-Aluminum Spoke 16" LR-E (QTY: 5)

Trim & Design

• Trim:
  • Fender Edge Molding: NO
  • Stone Guards: Vinyl (FT)
  • TP-RL Capping: Not Specified
  • Lower Body: Rocker Panel, Full Length
• Coupler:

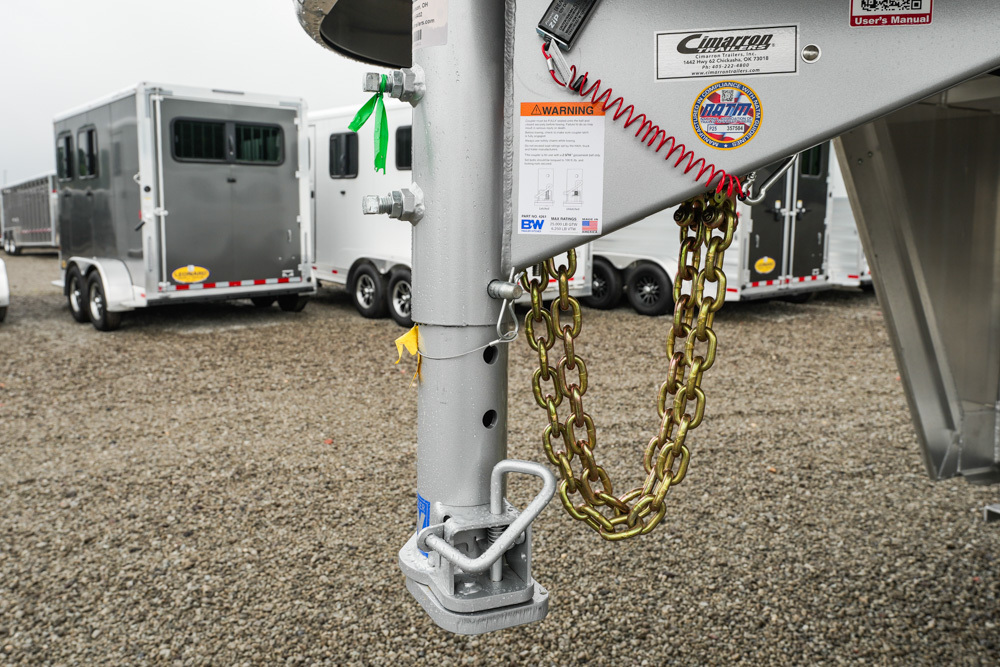

  • Type: 2 5/16" Positive Lock w/ Adjustable Height Stem (GN Standard)
• Design:

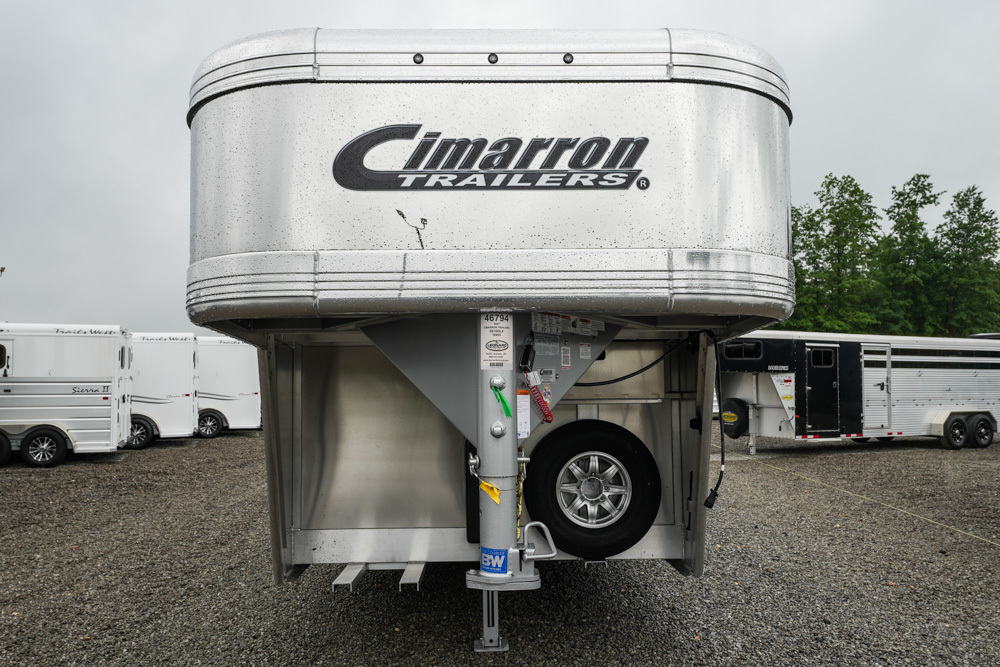

  • Nose Profile: Tapered Sides w/ 18 R Corners
  • Nose Style: Wrap Around Polished Stainless Steel
  • Side Walls: Extruded Side Slat w/ 1 Air Gap
  • S
