Trailer, 59,850GVW, 215/75R 17.5 Tires, Spring Suspension, Air Brakes,  Axle, 35’L, Pitts TA25 Tag Trailer – 25 Ton Equipment Trailer PRICE+FET

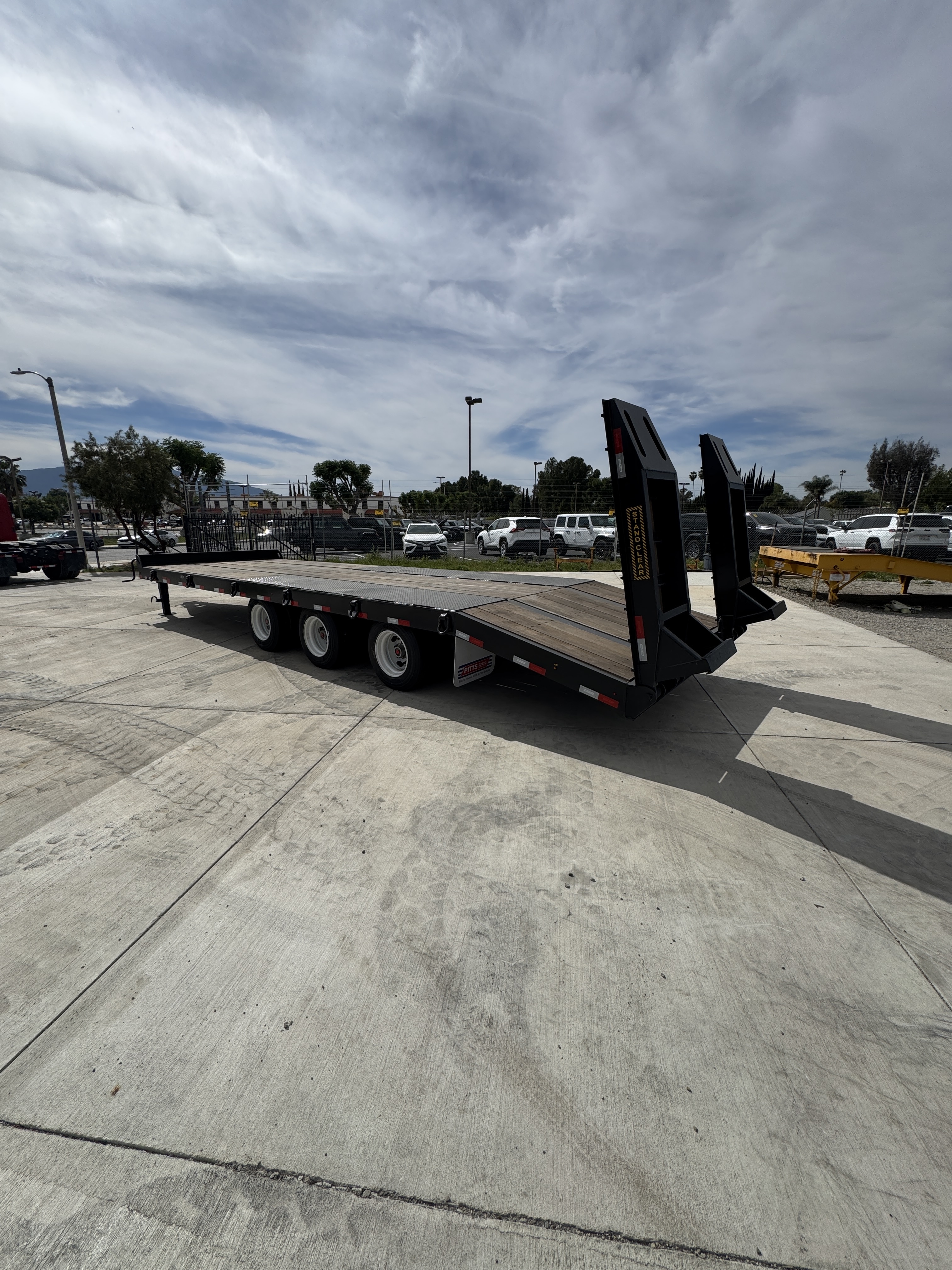

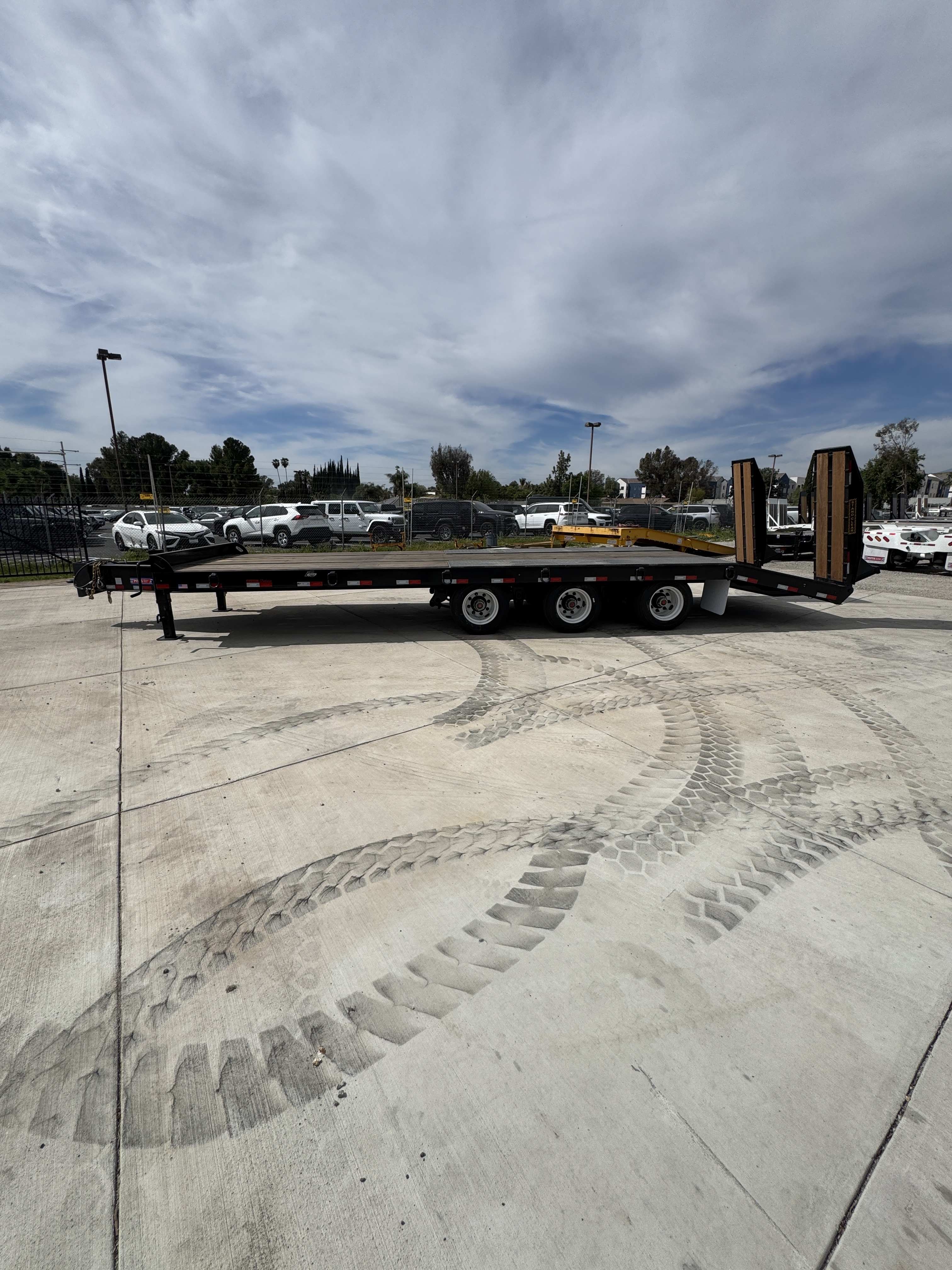

The Pitts TA25 Tag Trailer is a heavy-duty 25-ton equipment trailer built for hauling larger machinery such as excavators, loaders, and heavy construction equipment. Constructed with a one-piece 14" A572 Grade 50 high-tensile steel frame, this trailer delivers superior strength and durability for demanding applications.

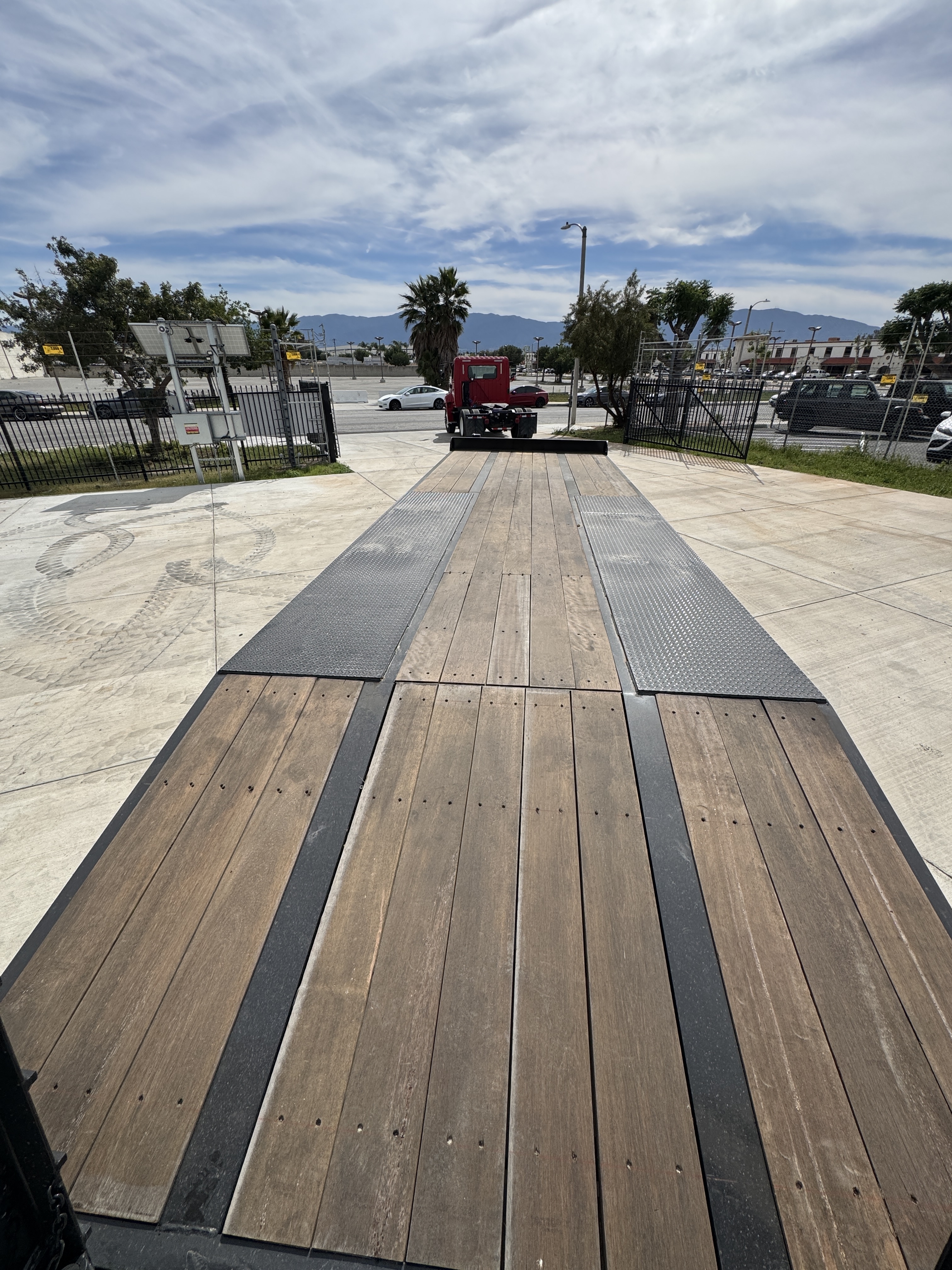

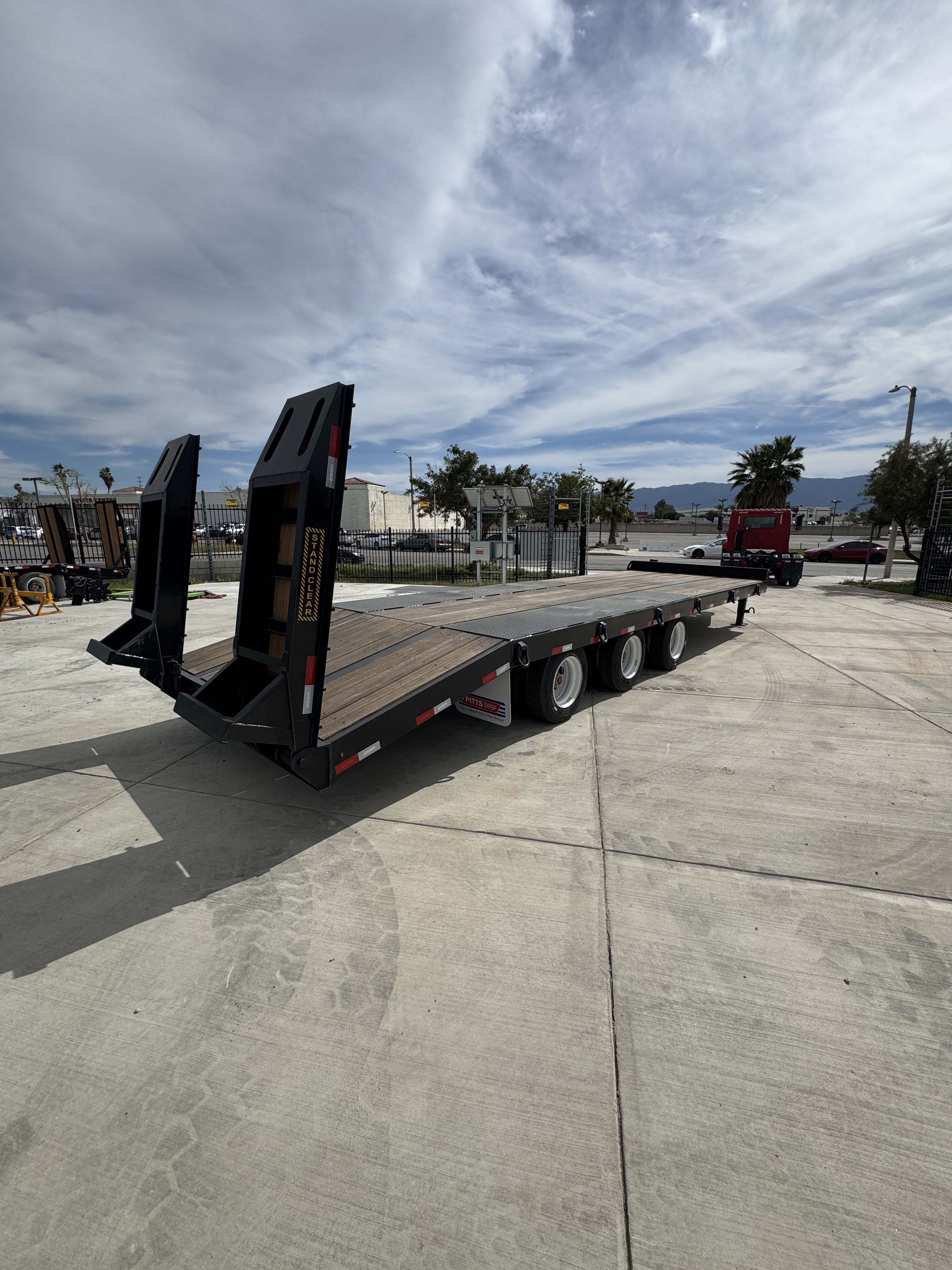

It features a 24' deck with 1½" Apitong hardwood flooring and a 5' wood-filled dovetail with spring-assisted ramps, allowing for safe and efficient loading and unloading of heavy equipment.

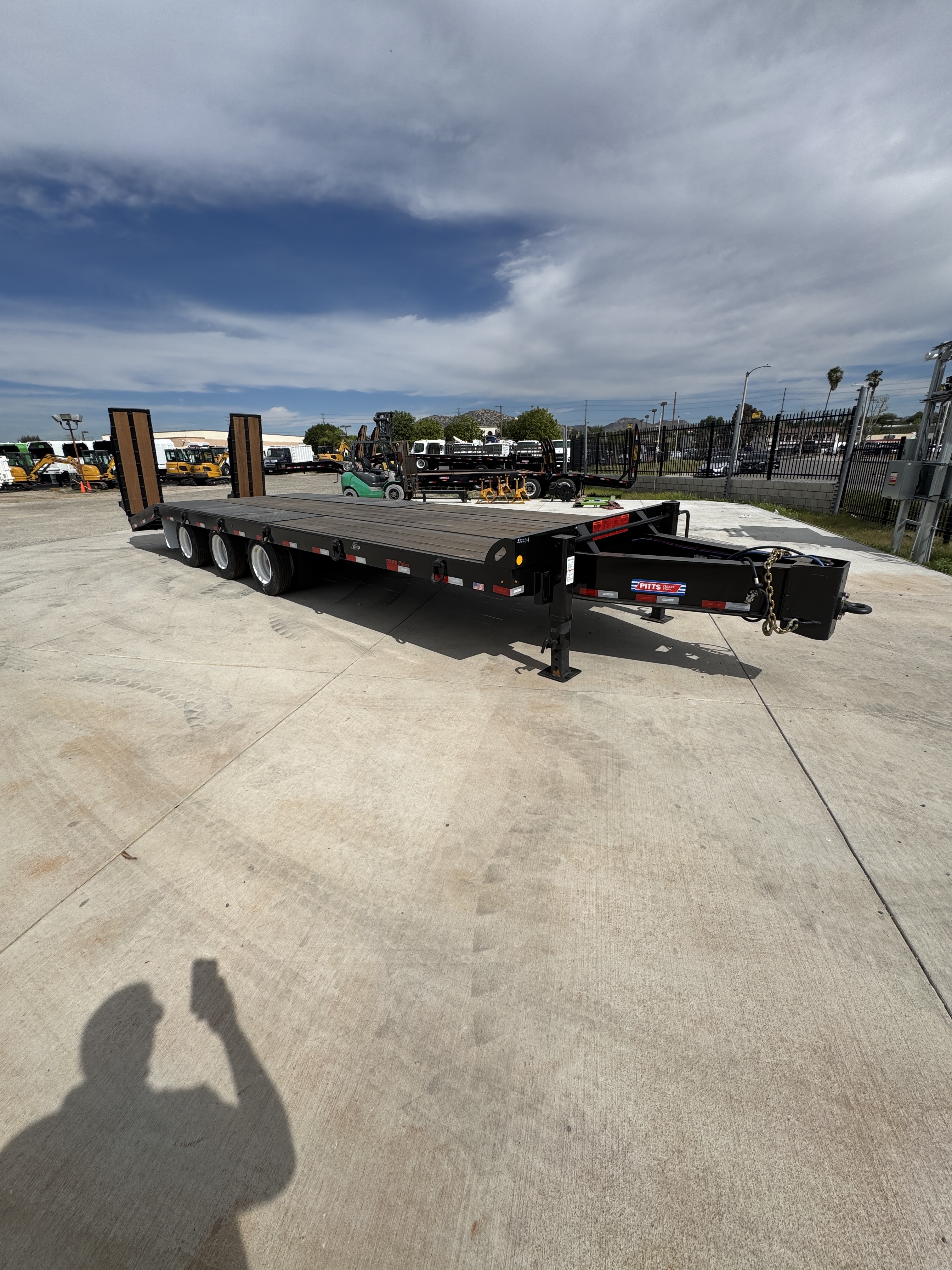

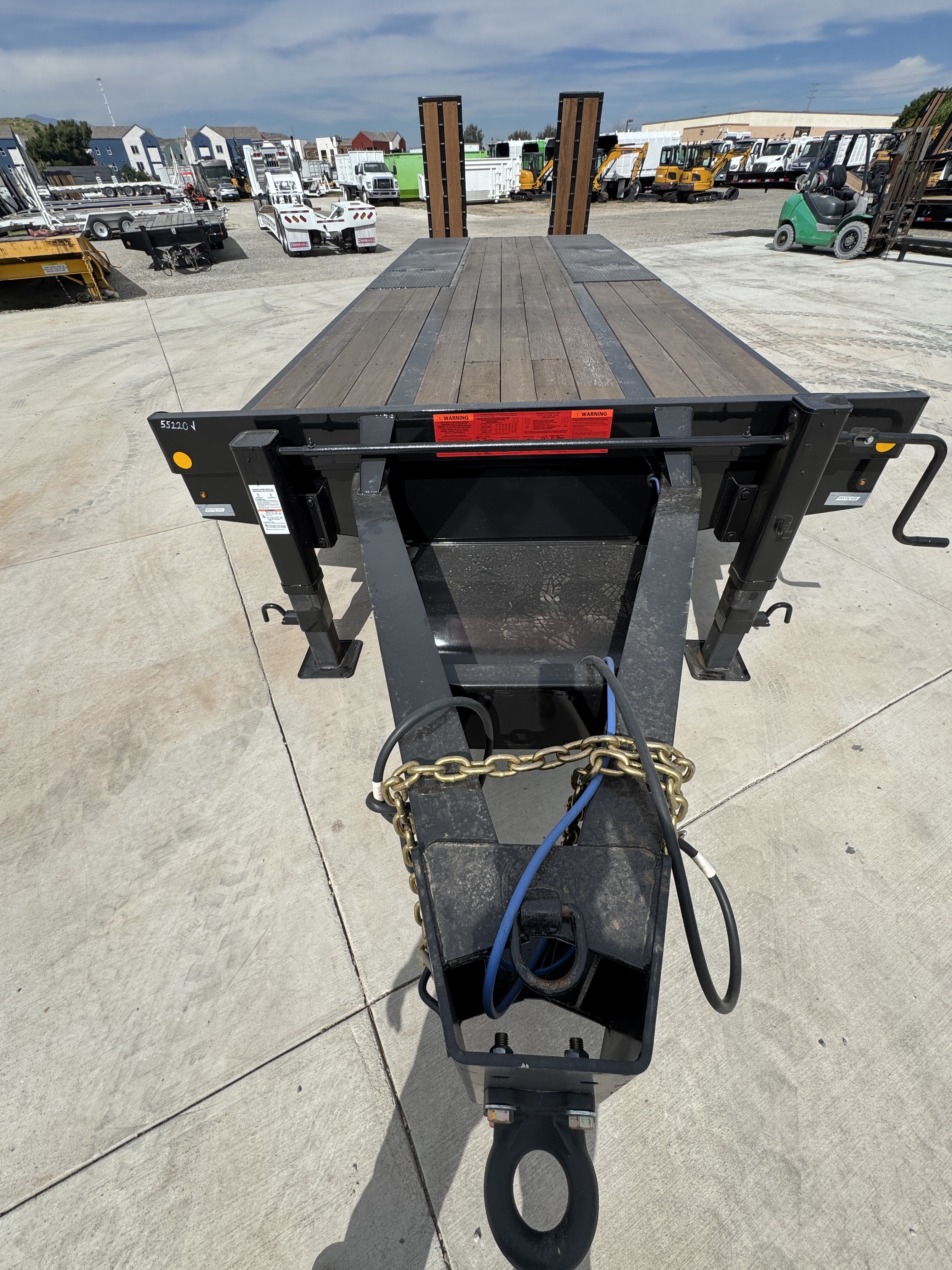

The TA25 rides on triple 22,500 lb axles with air brakes, ABS, and automatic slack adjusters, providing excellent braking performance and load stability. A 32" adjustable pintle hitch drawbar, 50,000 lb two-speed landing gear, and 12 D-ring tie-down points make this trailer versatile and jobsite ready.

Finished with a PPG primer and black acrylic urethane paint system and equipped with sealed LED lighting, the TA25 is built for long-lasting performance on the road and in the field.

Key Specs

Capacity: 25 Ton

Deck: 24' x 8'6"

Deck Height: 33" loaded

Axles: (3) 22,500 lb

Brakes: Air brakes with ABS

Decking: 1½" Apitong hardwood

Dovetail: 5' wood-filled

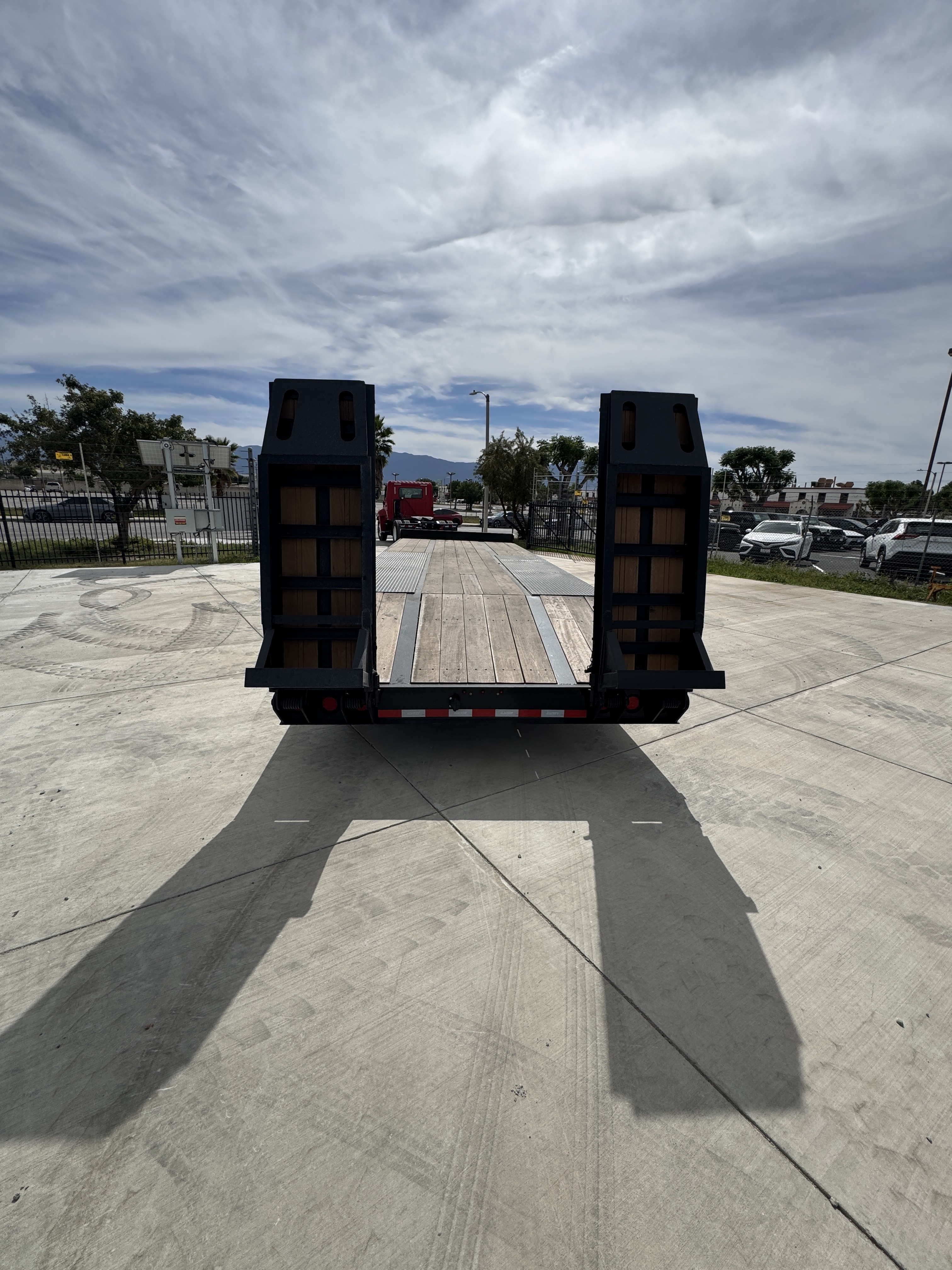

Ramps: 72" x 24" spring assist

Securement: 12 D-rings

Weight: 10,850 lbs

Overall Length: 35 ft
